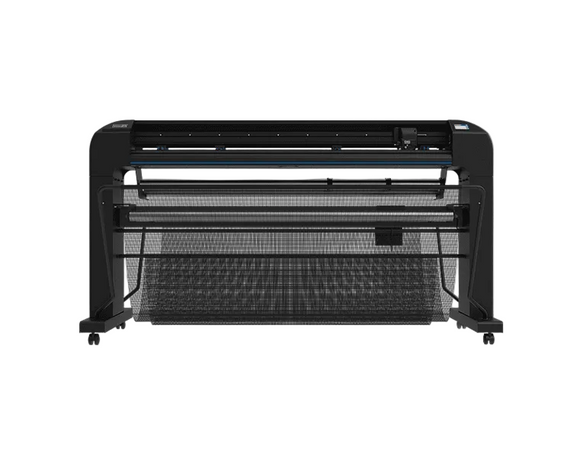

Summa Cutter Summa S3T 140 54" Tangential Vinyl Cutter

Summa S3T 140 54" Tangential Vinyl Cutter

  • Built for 54-Inch Specialty Production — Well suited to wall graphics, floor graphics, PPF and long laminated contour paths.
  • Four-Pinch-Roller Media Control — Helps keep wider specialty media stable across demanding jobs.
  • True Tangential Blade Control — Maintains detail and corner quality on materials that resist conventional drag cutting.
  • Up to 1 kg Cutting Force — Adds the pressure needed for thicker, coated and structured media.

$10,290.00

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Overview Details Supplies Specs Instructions

Summa S3T140 54" Tangential Vinyl Cutter is a professional Summa S3T cutter designed for 54-inch wall and window graphics, floor graphics, detailed decals, PPF, stencil films, and structured media. The S3T140 brings tangential cutting to 54-inch production with OPOS registration, 1.2 mm maximum cutting thickness, and up to 1 kg cutting force.

Key Benefits

  • Professional cutting system: Tangential Knife technology matched to the applications this model is built to handle.
  • Accurate contour cutting: Summa registration technology supports repeatable print-and-cut alignment.
  • Production-ready workflow: Designed for sign, print, decal, apparel, specialty-film, and finishing environments.
  • Summa software ecosystem: Supports Summa GoSign and related cutter workflow tools.

Best Applications

54-inch wall and window graphics, floor graphics, detailed decals, PPF, stencil films, and structured media.

Specifications

Model / SKU S3T140
Cutting System Tangential Knife
Shipping Weight 208 lb, palletized
Shipping Dimensions 85 × 23 × 28 in

GPI Supplies Support

GPI Supplies can help match the correct Summa cutter, width, accessories, and finishing workflow to your printer and production requirements.

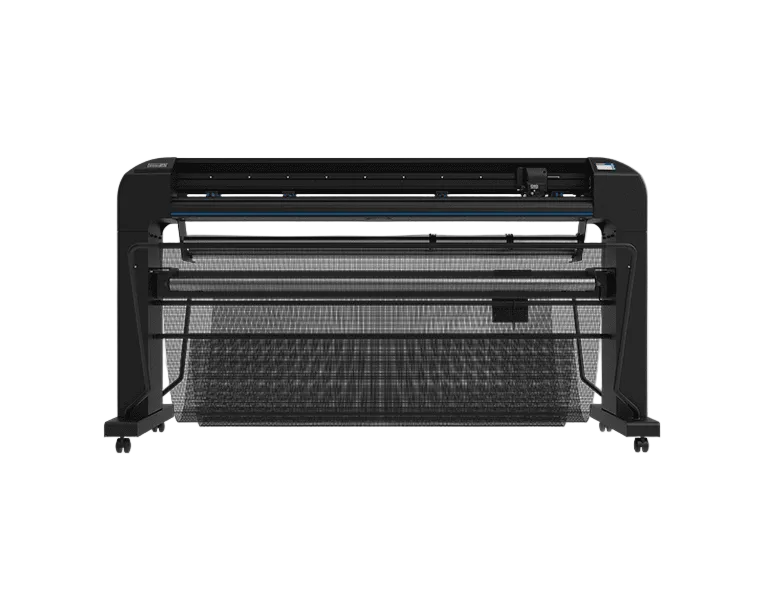

Summa S3T140: Tangential Precision for the 54-Inch Production Lane

Controlled cutting for wall graphics, floor graphics, laminated prints, long contour paths, PPF and structured media.

The Summa S3T140 brings true tangential cutting to the 54-inch production lane, giving shops a stronger match for common wide-format printer workflows while maintaining controlled blade movement across larger graphics.

With a maximum media width of 135 cm / 54 inches, four pinch rollers, up to 1 kg of cutting force, 1.2 mm maximum cutting thickness, OPOS registration and OPOS XY compensation, the S3T140 is built for wall and window graphics, floor graphics, laminated prints, detailed decals, PPF and structured media.

The S3T140 is especially well suited to shops that want to keep 54-inch graphics in one piece while gaining the corner quality, force and repeatability of true tangential cutting.

Summa S3T140: Tangential Precision for the 54-Inch Production Lane
Download Summa Roll Cutter Brochure
Why Tangential Cutting

More control where detail matters.

S3T140 is designed for jobs where laminates, specialty films, long paths and fine detail can expose the limits of conventional drag-knife cutting.

Wall & Window Graphics application for S3T140
Wall & Window Graphics

Match the 54-inch print lane

Keep wider wall and window graphics aligned to a familiar 54-inch production workflow.

Floor Graphics application for S3T140
Floor Graphics

Control laminated print stacks

Tangential cutting helps long laminated paths stay clean and predictable across high-value floor graphics.

PPF & Structured Media application for S3T140
PPF & Structured Media

Handle materials that push back

PPF, stencil films and structured media benefit from true tangential blade control and up to 1 kg of cutting force.

True tangential knifeActively controlled blade direction instead of simple drag movement.
Up to 1 kg forceExtra force for thicker, coated and specialty materials.
OPOS contour cuttingOptical registration for accurate print-and-cut workflows.
GoSign workflowProduction software support for repeatable shop workflows.
S3T140 Specifications

Match the machine to the production lane.

S3T140 is built for 54-inch-class production where long paths, laminates and specialty films demand more controlled cutting.

ModelS3T140
Maximum media width135 cm / 54 in
Cutting technologyTrue tangential cutting knife
Maximum cutting thickness1.2 mm / 0.047 in
Cutting forceUp to 1 kg
Pinch rollers4
Print registrationOPOS mark reading with OPOS XY compensation
ConnectivityUSB, Wi-Fi and Ethernet
SoftwareSumma GoSign; compatible with 50+ RIP workflows
Shipping weight208 lb, palletized
Shipping dimensions85 × 23 × 28 in
GPI price$10,290
S3T Family

Choose the width that fits your production lane.

Every S3T uses true tangential cutting. Match cutter width, pinch-roller configuration and your upstream printer to the work your shop runs most often.

Compare sizeS3T7530-inch classFlex/flock, DTF film, small decals and compact specialty work.Compare sizeS3T12048-inch classMid-format signage, laminated prints, detailed logos and coated films.Current modelS3T14054-inch class54-inch print-and-cut, PPF, floor graphics and long contour paths.Compare sizeS3T16062-inch classVehicle graphics, wide-roll PPF and larger specialty-media production.
Compare all Summa cuttersCamera registrationHigh-speed drag cutting
Complete the workflow

Connect the cutter to the rest of your shop.

Use these paths to compare cutters, media and services that fit around the S3T140.

Vinyl & finishing media

Pair the cutter with sign vinyl, print media and finishing supplies available through GPI Supplies.

Shop Vinyl & Sign MediaExplore Plotter CuttersCompare Vinyl Cutters

Dedicated DTF finishing

If automated roll-to-roll PET film finishing is the main objective, compare the dedicated S3 DTF 75 configuration before choosing a standard S3T.

View S3 DTF 75 BundleExplore GPI DTF & Print Services

Not sure whether you need S3D, S3T or S3TC?

Tell GPI Supplies what you cut, your printer width, expected volume and the materials giving you trouble.

Talk to GPI
Summa Cutter Consumable Summa Standard 36° Tangential Knives - 5 Pack

Summa Standard 36° Tangential Knives - 5 Pack

$265.00
Summa Cutter Consumable Summa Blue Tangential Knife Holder

Summa Blue Tangential Knife Holder

$139.00
Summa Cutter Consumable Summa Standard Tangential Nose Piece

Summa Standard Tangential Nose Piece

$121.00
Summa Cutter Consumable Summa 45° Tangential Wedge Knife

Summa 45° Tangential Wedge Knife

$65.00
Summa Cutter Consumable Summa 60° Tangential Sandblast Knife

Summa 60° Tangential Sandblast Knife

$62.00
Summa Cutter Consumable Summa Sandblast Tangential Nose Piece

Summa Sandblast Tangential Nose Piece

$112.00
Summa Cutter Consumable Summa Drag Knife Holder for Tangential Head

Summa Drag Knife Holder for Tangential Head

$150.00
Summa Cutter Accessory Summa Cutting Strip for Roll Cutters

Summa Cutting Strip for Roll Cutters

$38.00
Summa Cutter Accessory Summa S Class 3 140 Roll-Up System

Summa S Class 3 140 Roll-Up System

$1,950.00
Summa Cutter Accessory Summa Extra Middle Pinch Roller Kit for S Class 3

Summa Extra Middle Pinch Roller Kit for S Class 3

$460.00
Summa Cutter Software Summa GoSign Pro Pack Summa Cutter Software Summa GoSign Pro Pack

Summa GoSign Pro Pack

$1,050.00

Technical Specifications

Summa S3T140 Specifications

54-inch-class tangential cutting for PPF, floor graphics and specialty media.

Model / SKUS3T140
Maximum media width135 cm / 54 in
Cutting technologyTrue tangential knife
Maximum cutting thickness1.2 mm / 0.047 in
Cutting forceUp to 1 kg
Pinch rollers4
RegistrationOPOS with OPOS XY compensation
ConnectivityUSB, Wi-Fi and Ethernet
SoftwareSumma GoSign; compatible with 50+ RIP workflows
Shipping weight208 lb, palletized
Shipping dimensions85 × 23 × 28 in
GPI price$10,290
