Summa Cutter Summa S3D 75 30" Drag Knife Vinyl Cutter

Summa S3D 160 62" Drag Knife Vinyl Cutter

  • Wide-Format S Class 3 Production — Designed for vehicle graphics, large decals and 63–65-inch printer workflows.
  • Four-Pinch-Roller Tracking — Supports stable handling across wide media and long contour-cut jobs.
  • OPOS Registration + XY Compensation — Keeps printed graphics aligned across large-format production.
  • Mechanical Job Separation — Automatic end-cutting reduces trimming time and keeps batches organized.

$7,990.00

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Overview Details Supplies Specs Instructions

Summa S3D160 62" Drag Knife Vinyl Cutter is a production-focused Summa S Class 3 drag-knife cutter built for wide-format production lines using 63–65-inch printers and high-volume roll workflows. The S3D platform combines high-speed drag-knife cutting, OPOS optical registration, stable long-run tracking, and automatic sheet cut-off to keep print-and-cut work moving with less operator intervention.

Why Choose the S3D160?

  • High-speed drag-knife cutting: optimized for everyday vinyl, decals, labels, and lightly laminated print-and-cut graphics.
  • OPOS contour-cut registration: optical mark reading helps keep printed graphics accurately aligned during contour cutting.
  • OPOS XY compensation: adjusts the cut path to compensate for deformation in printed graphics.
  • Automatic sheet cut-off: cleanly separates completed jobs and reduces manual trimming between runs.
  • Production connectivity: USB, Wi-Fi, and Ethernet support flexible shop integration.
  • GoSign workflow: includes Summa cutting software support and compatibility with a wide range of RIP workflows.

Best Applications

The S3D160 is well suited for vehicle graphics, wide-format wall and window graphics, event signage, oversized decals, and long contour-cut jobs.

Specifications

Model S3D160
Cutting Technology High-speed drag knife
Maximum Media Width 158 cm / 62.2 in
Maximum Cutting Thickness 0.8 mm
Cutting Force Up to 400 g
Pinch Rollers 4
Print Registration OPOS optical mark reading with OPOS XY compensation
Connectivity USB, Wi-Fi, Ethernet
Software Summa GoSign workflow management; compatible with 50+ RIP software packages
Shipping Weight 252 lb, palletized
Shipping Dimensions 94 × 23 × 28 in

Standard Delivery

Includes integral stand and basket, OPOS contour-cut technology, two core holders, power cable, USB cable, tool storage compartment, drag knife holder, two standard drag knives, multilingual Quick Start materials, access to full operation manuals, and included cutting-software licensing/downloads.

Built for Professional Print-and-Cut Production

Summa S3D cutters are designed for sign shops, print providers, decal producers, and production teams that need repeatable contour cutting across long rolls without sacrificing speed or accuracy. GPI Supplies can help match the correct cutter width and finishing workflow to your printer and production requirements.

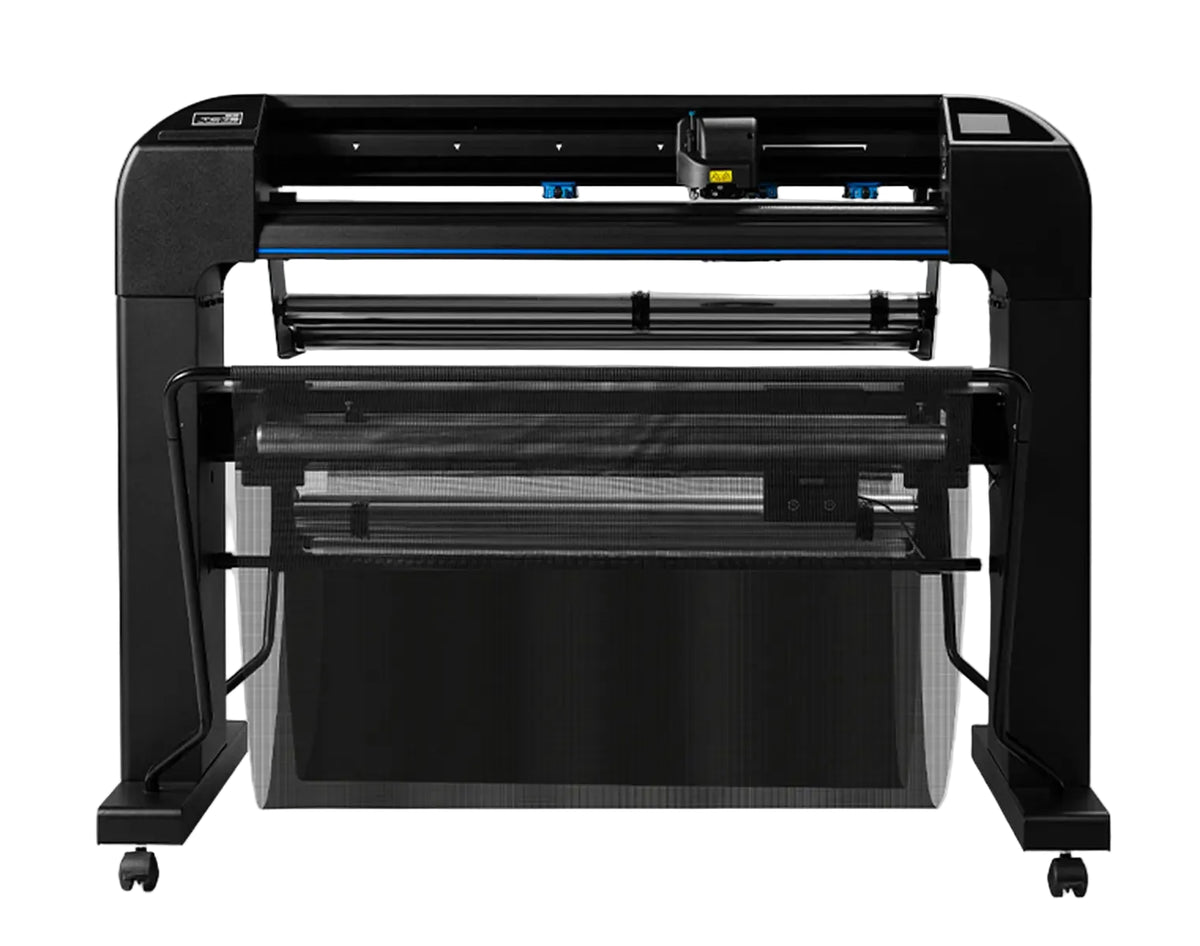

Summa S3D160: High-Speed Drag Cutting for Wide-Format Production

Wide-roll automation for vehicle graphics, large decals, retail graphics and 63–65-inch printer workflows.

The Summa S3D160 extends the S3D drag-knife platform to the widest production lane in the family, helping high-volume shops keep wide printed rolls moving without turning finishing into a bottleneck.

With a 62.2-inch maximum working width, four pinch rollers, up to 400 g of cutting force, 0.8 mm maximum cutting thickness, OPOS registration and OPOS XY compensation, the S3D160 is designed to pair naturally with 63–65-inch printers.

For wide-format vehicle graphics, retail graphics and large contour-cut work, the S3D160 emphasizes throughput, tracking stability and clean mechanical job separation.

Summa S3D160: High-Speed Drag Cutting for Wide-Format Production
Download Summa Roll Cutter Brochure
Production Drag Cutting

Built for momentum, tracking and clean job separation.

S3D160 is designed for wide-format roll production where throughput and automated job handling are the priority.

Roll Production

Keep production moving

Stable roll handling and tracking reduce stops across recurring jobs.

High-Speed Drag Cutting

Fast everyday finishing

Optimized for labels, vinyl, decals and lightly laminated graphics.

Automation

Finish jobs cleanly

OPOS registration and mechanical end-cutting help keep batches organized.

High-speed drag knife
Fast roll-media cutting.
Up to 400 g force
Controlled vinyl cutting.
OPOS registration
Accurate contour alignment.
Mechanical end-cutting
Clean job separation.

S3D160 specifications & buying fit

Maximum media width158 cm / 62.2 in
Cutting technologyHigh-speed drag knife
Maximum cutting thickness0.8 mm / 0.031 in
Cutting forceUp to 400 g
Pinch rollers4
RegistrationOPOS with OPOS XY compensation
ConnectivityUSB, Wi-Fi and Ethernet
Shipping weight252 lb, palletized
Shipping dimensions94 × 23 × 28 in
GPI price$7,990

Choose your S3D width.

S3D7530-inch classS3D12048-inch classS3D14054-inch classS3D16062-inch class

Match the cutter to your printer and throughput.

GPI can help confirm width, accessories, freight and the best Summa platform for your production goals.

Talk to GPI
Summa Cutter Consumable Summa Standard 36° Drag Knives - 5 Pack

Summa Standard 36° Drag Knives - 5 Pack

$161.00
Summa Cutter Consumable Summa 60° Drag Knife 1.5 mm

Summa 60° Drag Knife 1.5 mm

$45.00
Summa Cutter Consumable Summa Standard Drag Knife Holder 1.5 mm

Summa Standard Drag Knife Holder 1.5 mm

$132.00
Summa Cutter Accessory Summa Cutting Strip for Roll Cutters

Summa Cutting Strip for Roll Cutters

$38.00
Summa Cutter Consumable Summa 55° Sandblast Drag Knives - 5 Pack

Summa 55° Sandblast Drag Knives - 5 Pack

$195.00
Summa Cutter Consumable Summa Copper Drag Knife Holder 2.0 mm

Summa Copper Drag Knife Holder 2.0 mm

$174.00
Summa Cutter Accessory Summa Manual Cut-Off Razor Blade Holder

Summa Manual Cut-Off Razor Blade Holder

$45.00
Summa Cutter Accessory Summa Razor Blades for Cut-Off Holder - 10 Pack

Summa Razor Blades for Cut-Off Holder - 10 Pack

$28.00
Summa Cutter Accessory Summa S Class 3 160 Roll-Up System

Summa S Class 3 160 Roll-Up System

$2,290.00
Summa Cutter Accessory Summa Extra Middle Pinch Roller Kit for S Class 3

Summa Extra Middle Pinch Roller Kit for S Class 3

$460.00
Summa Cutter Software Summa GoSign Pro Pack Summa Cutter Software Summa GoSign Pro Pack

Summa GoSign Pro Pack

$1,050.00

Technical Specifications

Summa S3D160 Specifications

The widest S3D model for high-throughput wide-format roll production.

Model / SKUS3D160
Maximum media width158 cm / 62.2 in
Cutting technologyHigh-speed drag knife
Maximum cutting thickness0.8 mm / 0.031 in
Cutting forceUp to 400 g
Pinch rollers4
RegistrationOPOS with OPOS XY compensation
ConnectivityUSB, Wi-Fi and Ethernet
SoftwareSumma GoSign; compatible with 50+ RIP workflows
Shipping weight252 lb, palletized
Shipping dimensions94 × 23 × 28 in
GPI price$7,990
