Summa Cutter Summa S3T 120 48" Tangential Vinyl Cutter

Summa S3T 120 48" Tangential Vinyl Cutter

  • True Tangential Cutting for Mid-Width Work — Ideal for laminated prints, detailed logos, stencil films and PPF.
  • Up to 1 kg Cutting Force — Provides controlled pressure on coated and specialty media.
  • OPOS Registration + XY Compensation — Keeps print-and-cut graphics aligned while compensating for distortion.
  • 48-Inch-Class Production Fit — A practical match for mid-format shops that need more control than a drag knife.

$8,690.00

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Overview Details Supplies Specs Instructions

Summa S3T120 48" Tangential Vinyl Cutter is a professional Summa S3T cutter designed for 48-inch signage, detailed decals, laminated prints, stencil films, PPF, and specialty media. The S3T120 provides true tangential cutting, 1.2 mm maximum cutting thickness, OPOS registration, and up to 1 kg cutting force.

Key Benefits

  • Professional cutting system: Tangential Knife technology matched to the applications this model is built to handle.
  • Accurate contour cutting: Summa registration technology supports repeatable print-and-cut alignment.
  • Production-ready workflow: Designed for sign, print, decal, apparel, specialty-film, and finishing environments.
  • Summa software ecosystem: Supports Summa GoSign and related cutter workflow tools.

Best Applications

48-inch signage, detailed decals, laminated prints, stencil films, PPF, and specialty media.

Specifications

Model / SKU S3T120
Cutting System Tangential Knife
Shipping Weight 192 lb, palletized
Shipping Dimensions 79 × 23 × 28 in

GPI Supplies Support

GPI Supplies can help match the correct Summa cutter, width, accessories, and finishing workflow to your printer and production requirements.

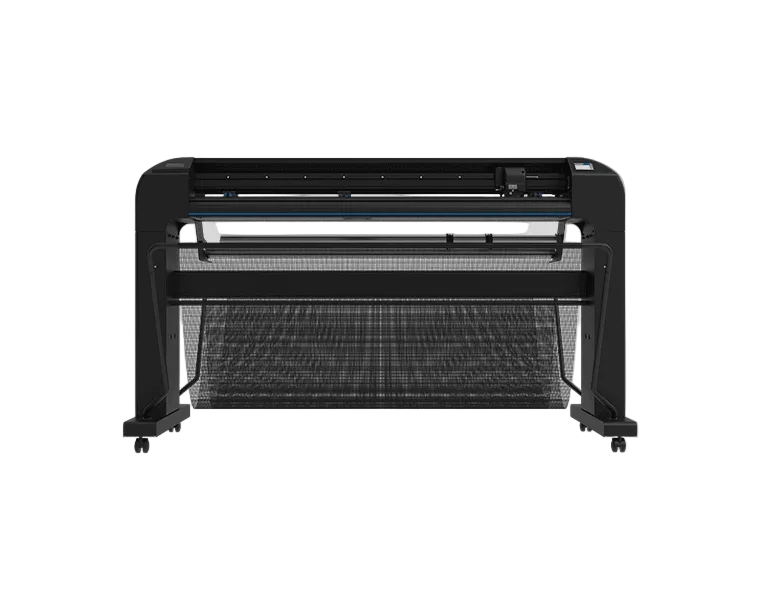

Summa S3T120: Tangential Control for 48-Inch Production

True tangential cutting for mid-format signage, laminated graphics, stencil films, PPF and detail-critical production.

The Summa S3T120 brings true tangential cutting into the 48-inch production lane, giving sign and print shops more blade control on materials and designs that can challenge conventional drag-knife movement.

With a maximum media width of 127 cm / 50 inches, up to 1 kg of cutting force, 1.2 mm maximum cutting thickness, OPOS registration, OPOS XY compensation, and USB, Wi-Fi and Ethernet connectivity, the S3T120 is built for laminated prints, detailed logos, stencil films, PPF, small lettering and general mid-format specialty work.

For shops running 48-inch printer lanes, the S3T120 balances production width with predictable tangential precision without forcing a move to a larger finishing footprint.

Summa S3T120: Tangential Control for 48-Inch Production
Download Summa Roll Cutter Brochure
Why Tangential Cutting

More control where detail matters.

S3T120 is designed for jobs where laminates, specialty films, long paths and fine detail can expose the limits of conventional drag-knife cutting.

Sign Vinyl & Lettering application for S3T120
Sign Vinyl & Lettering

Keep small lettering clean

Colored sign vinyl and smaller lettering benefit from controlled blade direction that keeps corners and fine details intact.

Laminated Graphics application for S3T120
Laminated Graphics

Cut through coated print stacks

Tangential force and blade orientation help laminated graphics cut consistently without wandering or lifting.

PPF & Stencil Films application for S3T120
PPF & Stencil Films

More authority on specialty media

PPF, stencil films and thicker coated media benefit from up to 1 kg of cutting force and controlled tangential movement.

True tangential knifeActively controlled blade direction instead of simple drag movement.
Up to 1 kg forceExtra force for thicker, coated and specialty materials.
OPOS contour cuttingOptical registration for accurate print-and-cut workflows.
GoSign workflowProduction software support for repeatable shop workflows.
S3T120 Specifications

Match the machine to the production lane.

S3T120 is built for 48-inch-class work where material resistance and detail matter more than simple high-speed drag cutting.

ModelS3T120
Maximum media width127 cm / 50 in
Cutting technologyTrue tangential cutting knife
Maximum cutting thickness1.2 mm / 0.047 in
Cutting forceUp to 1 kg
Pinch rollers3
Print registrationOPOS mark reading with OPOS XY compensation
ConnectivityUSB, Wi-Fi and Ethernet
SoftwareSumma GoSign; compatible with 50+ RIP workflows
Shipping weight192 lb, palletized
Shipping dimensions79 × 23 × 28 in
GPI price$8,690
S3T Family

Choose the width that fits your production lane.

Every S3T uses true tangential cutting. Match cutter width, pinch-roller configuration and your upstream printer to the work your shop runs most often.

Compare sizeS3T7530-inch classFlex/flock, DTF film, small decals and compact specialty work.Current modelS3T12048-inch classMid-format signage, laminated prints, detailed logos and coated films.Compare sizeS3T14054-inch class54-inch print-and-cut, PPF, floor graphics and long contour paths.Compare sizeS3T16062-inch classVehicle graphics, wide-roll PPF and larger specialty-media production.
Compare all Summa cuttersCamera registrationHigh-speed drag cutting
Complete the workflow

Connect the cutter to the rest of your shop.

Use these paths to compare cutters, media and services that fit around the S3T120.

Vinyl & finishing media

Pair the cutter with sign vinyl, print media and finishing supplies available through GPI Supplies.

Shop Vinyl & Sign MediaExplore Plotter CuttersCompare Vinyl Cutters

Dedicated DTF finishing

If automated roll-to-roll PET film finishing is the main objective, compare the dedicated S3 DTF 75 configuration before choosing a standard S3T.

View S3 DTF 75 BundleExplore GPI DTF & Print Services

Not sure whether you need S3D, S3T or S3TC?

Tell GPI Supplies what you cut, your printer width, expected volume and the materials giving you trouble.

Talk to GPI
Summa Cutter Consumable Summa Standard 36° Tangential Knives - 5 Pack

Summa Standard 36° Tangential Knives - 5 Pack

$265.00
Summa Cutter Consumable Summa Blue Tangential Knife Holder

Summa Blue Tangential Knife Holder

$139.00
Summa Cutter Consumable Summa Standard Tangential Nose Piece

Summa Standard Tangential Nose Piece

$121.00
Summa Cutter Consumable Summa 45° Tangential Wedge Knife

Summa 45° Tangential Wedge Knife

$65.00
Summa Cutter Consumable Summa 60° Tangential Sandblast Knife

Summa 60° Tangential Sandblast Knife

$62.00
Summa Cutter Consumable Summa Sandblast Tangential Nose Piece

Summa Sandblast Tangential Nose Piece

$112.00
Summa Cutter Consumable Summa Drag Knife Holder for Tangential Head

Summa Drag Knife Holder for Tangential Head

$150.00
Summa Cutter Accessory Summa Cutting Strip for Roll Cutters

Summa Cutting Strip for Roll Cutters

$38.00
Summa Cutter Accessory Summa Extra Middle Pinch Roller Kit for S Class 3

Summa Extra Middle Pinch Roller Kit for S Class 3

$460.00
Summa Cutter Software Summa GoSign Pro Pack Summa Cutter Software Summa GoSign Pro Pack

Summa GoSign Pro Pack

$1,050.00

Technical Specifications

Summa S3T120 Specifications

Tangential control for mid-width specialty graphics and laminated print production.

Model / SKUS3T120
Maximum media width127 cm / 50 in
Cutting technologyTrue tangential knife
Maximum cutting thickness1.2 mm / 0.047 in
Cutting forceUp to 1 kg
Pinch rollers3
RegistrationOPOS with OPOS XY compensation
ConnectivityUSB, Wi-Fi and Ethernet
SoftwareSumma GoSign; compatible with 50+ RIP workflows
Shipping weight192 lb, palletized
Shipping dimensions79 × 23 × 28 in
GPI price$8,690

Instructions for the Summa S3T 120 48" Tangential Vinyl Cutter

No additional instructions found for this product.
