360° Printing
Seamless wraparound graphics

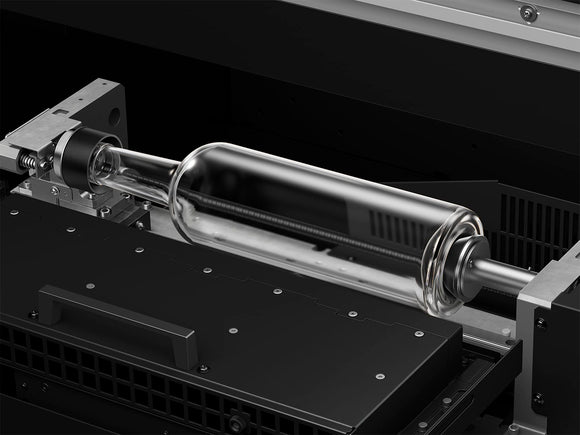

Helical printing continuously advances while the object rotates for smooth cylindrical decoration.

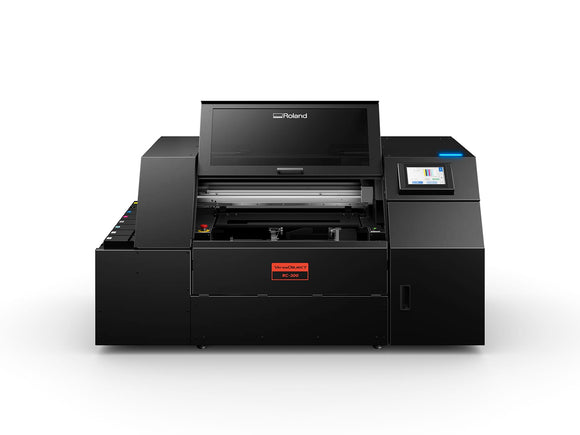

Roland VersaObject RC-300 UV Cylindrical Printer is a production-grade direct-to-object UV printer engineered for cylindrical, tapered, and curved-profile products. Using Roland DG's helical printing method, the RC-300 prints continuously around the object as it rotates, enabling seamless 360° decoration on products that conventional rotary systems can struggle to handle.
Why Choose the Roland RC-300?
- Helical 360° printing: Continuously prints around rotating objects for smooth, seamless cylindrical decoration.
- Cylindrical, tapered & curved-profile support: Decorate bottles, tumblers, cups, flasks, containers, packaging, and personalized products.
- High-resolution UV output: Print at up to 1,200 dpi with built-in UV-LED curing.
- Premium ink effects: ECO-UV EUV-HB inks support CMYK, high-opacity white, gloss effects, and printable primer.
- Short runs & personalization: Produce prototypes, limited editions, seasonal products, and customized goods without conventional setup costs.
- Roland workflow software: Includes VersaWorks and Roland DG Connect Hub for RIP workflow, device monitoring, and production management.
Best Applications
The RC-300 is designed for premium product decoration across drinkware, bottles, cosmetic containers, promotional items, packaging, personalized goods, limited-edition products, and branded merchandise.
Supported Object Size
| Object Diameter | 1.78–5 in. (45–127 mm) |
|---|---|
| Object Length | 1.19–13.9 in. (30–355 mm) |
| Maximum Taper | 10° |
| Maximum Object Weight | 6.6 lb. (3 kg) |
| Maximum Printing Length | 11.8 in. (300 mm) |
Technical Specifications
| Model | RC-300 Standard Model |
|---|---|
| Printing Method | Piezo inkjet, helical printing |
| Ink | Roland ECO-UV EUV-HB, 1000 mL bottles |
| Ink Configuration | Cyan, Magenta, Yellow, Black, Gloss, White × 2, and Primer |
| Maximum Resolution | 1,200 dpi |
| Curing | Built-in UV-LED lamp |
| Connectivity | Ethernet (100BASE-TX / 1000BASE-T) |
| Printer Dimensions | 63 × 33.1 × 30.9 in. (1,599 × 840 × 783 mm) |
| Printer Weight | 446 lb. (202 kg) |
| Power Consumption | Approx. 550 W during operation |
Included with the RC-300
Power cord, cleaning liquid, drain bottle, jigs, User's Manual, VersaWorks, and Roland DG Connect Hub.
RC-300 vs. RC-300c
The RC-300 Standard Model is designed for general cylindrical, tapered, and curved-profile direct-to-object printing. Shops that specifically need to print on transparent, pre-filled, or pre-labeled bottles should consider the RC-300c Clear Support Model.
GPI Supplies Support
GPI Supplies can help configure the RC-300 around your product dimensions, materials, ink requirements, production goals, and workflow. Contact us for application guidance, installation planning, ink setup, and ongoing Roland support.

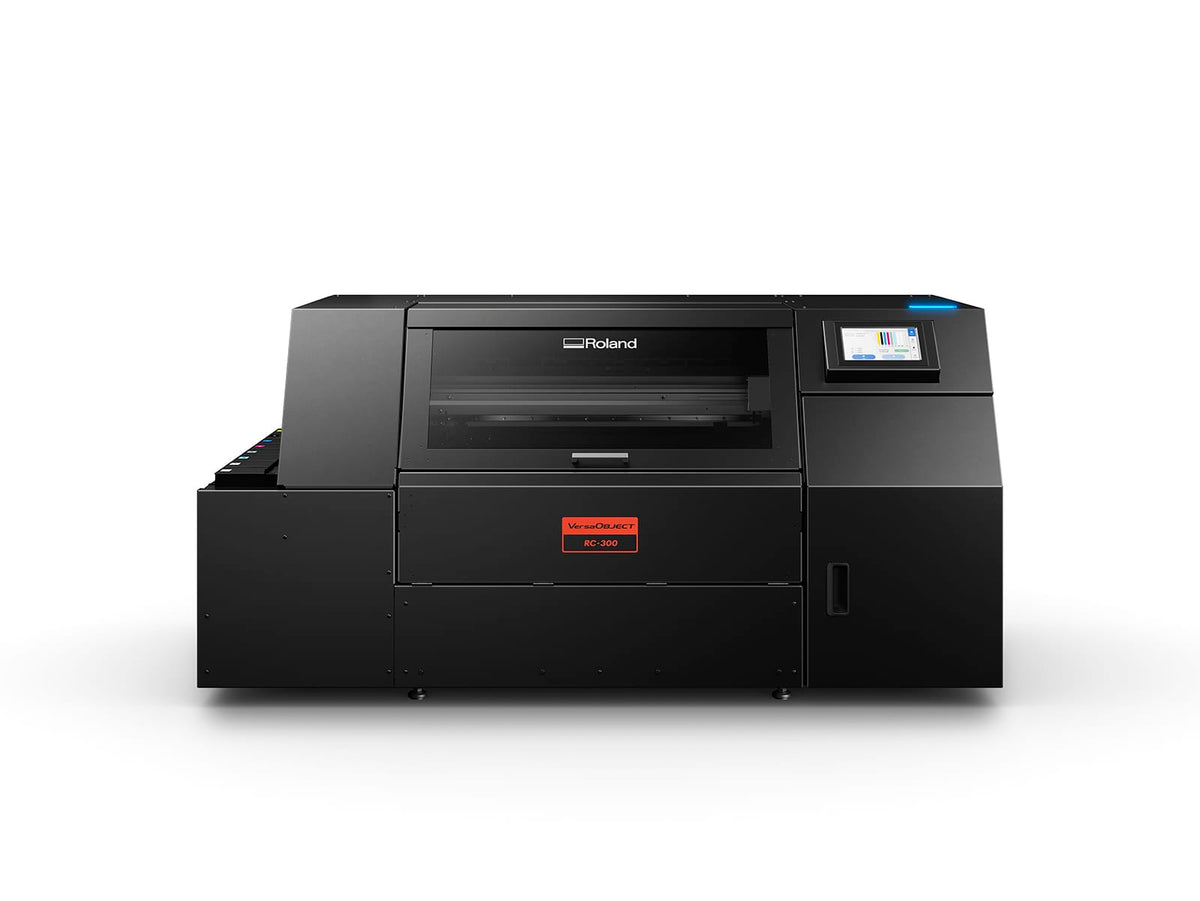

Roland RC-300: 360° UV Printing for Cylindrical Products
Production-ready helical printing for bottles, tumblers, cups, flasks, containers and curved-profile products.
Helical Direct-to-Object UV
Built to print around the product—not just on it.
The RC-300 is designed for high-value cylindrical decoration where registration, wraparound consistency and flexible ink effects matter.
Product Variety
Print bottles, cups and tapered objects
Supports cylindrical, tapered and curved-profile products across drinkware, packaging and branded goods.
UV Effects
White, gloss and primer in the workflow
EUV-HB inks expand design capability beyond CMYK for opaque white, gloss effects and adhesion support.
Up to 5 in diameter
127 mm maximum object diameter.
127 mm maximum object diameter.
Up to 13.9 in long
355 mm maximum object length.
355 mm maximum object length.
Up to 10° taper
Supports tapered product shapes.
Supports tapered product shapes.
Up to 1,200 dpi
High-resolution UV output.
High-resolution UV output.
RC-300 specifications & production fit
| Model | RC-300 Standard |
|---|---|
| Printing method | Piezo inkjet with helical cylindrical printing |
| Object diameter | 1.78–5 in / 45–127 mm |
| Object length | 1.19–13.9 in / 30–355 mm |
| Maximum print length | 11.8 in / 300 mm |
| Maximum taper | 10° |
| Maximum object weight | 6.6 lb / 3 kg |
| Maximum resolution | 1,200 dpi |
| Ink | ECO-UV EUV-HB, 1000 mL |
| Ink configuration | CMYK + Gloss + White ×2 + Primer |
| Connectivity | Ethernet 100BASE-TX / 1000BASE-T |
| Printer dimensions | 63 × 33.1 × 30.9 in / 1,599 × 840 × 783 mm |
| Printer weight | 446 lb / 202 kg |
| GPI price | $69,995 |
RC-300 Standard or RC-300c Clear Support?
RC-300 StandardGeneral cylindrical direct-to-object production
Choose the Standard model for bottles, tumblers, cups, flasks, containers and other cylindrical, tapered or curved-profile products that do not require the clear-support workflow.
RC-300c Clear SupportClear, filled and pre-labeled bottle workflows
Choose the RC-300c when your application requires the additional clear-support configuration for transparent, pre-filled or pre-labeled bottles.
View RC-300c Clear SupportPlanning a cylindrical UV production workflow?
GPI can help evaluate object size, taper, materials, ink setup, cleaning requirements, installation and production volume before you order.
Explore the Roland VersaObject RC-300 UV Cylindrical Printer
