Transparent Bottles
Keep the product visible
Print on clear and translucent bottles while preserving the see-through presentation of the package.

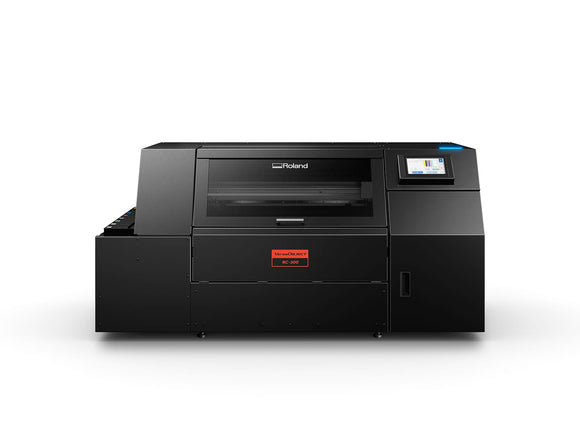

Roland VersaObject RC-300c Clear Support UV Cylindrical Printer extends Roland's RC-300 cylindrical platform for direct decoration of transparent, pre-filled, and pre-labeled bottles. It uses the same helical UV printing method as the standard RC-300 while adding the clear-support configuration required for clear and translucent bottle workflows.
Why Choose the Roland RC-300c?
- Print on clear and liquid-filled bottles: Designed for transparent and translucent bottle decoration without requiring blackout filling.
- Helical 360° printing: Prints continuously around the rotating object for smooth wraparound graphics.
- Post-production decorating: Add branding, spot color, white ink, gloss, and premium effects after bottles are filled or labeled.
- Tapered and curved-profile support: Handles shapes conventional rotary systems often struggle to decorate.
- Premium EUV-HB ink system: CMYK, gloss, white, and primer support durable direct-to-object applications.

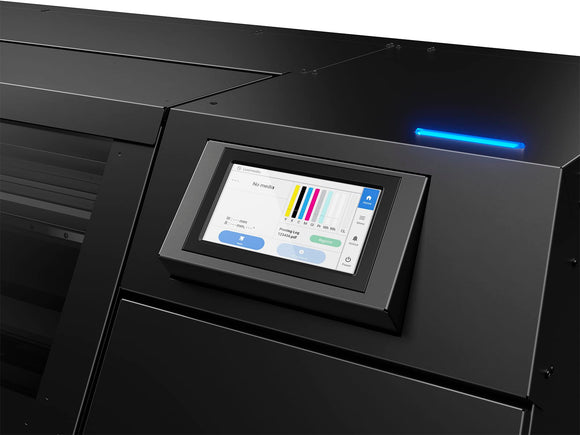

- Roland production workflow: Includes VersaWorks 7 and Roland DG Connect for setup, color control, and monitoring.
Best Applications
The RC-300c is especially well suited for premium wine and spirit bottles, beverage packaging, cosmetics, fragrance bottles, clear containers, limited editions, personalization, and post-production decoration of pre-filled or pre-labeled products.
Supported Object Size
| Object Diameter | 1.78–5 in. (45–127 mm) |
|---|---|
| Object Length | 1.19–13.9 in. (30–355 mm) |
| Maximum Taper | 10° |
| Maximum Object Weight | 6.6 lb. (3 kg) |
| Maximum Printing Length | 11.8 in. (300 mm) |
Technical Specifications
| Model | RC-300c Clear Support Model |
|---|---|

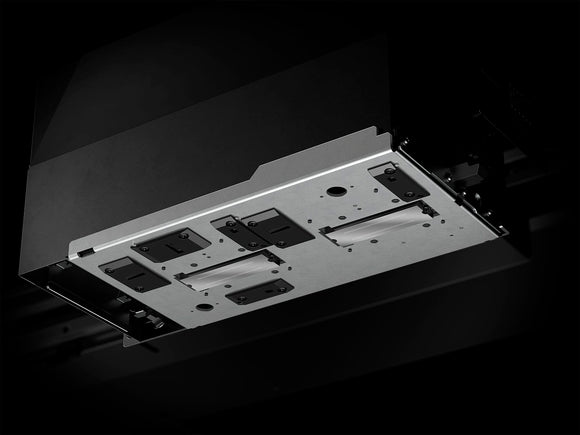

| Printing Method | Piezo inkjet, helical printing |

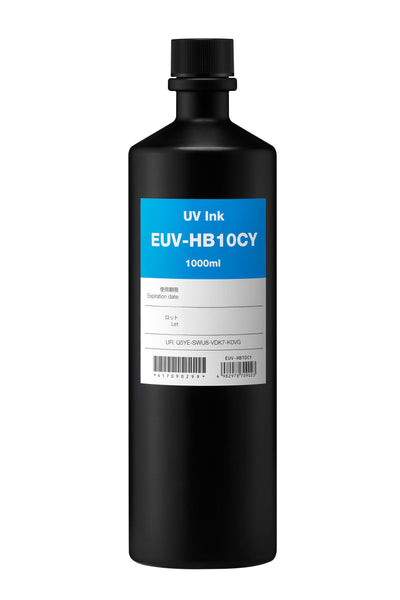

| Ink | Roland ECO-UV EUV-HB, 1000 mL bottles |

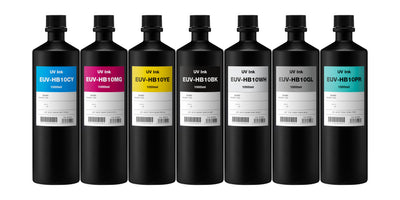

| Ink Configuration | Cyan, Magenta, Yellow, Black, Gloss, White × 2, and Primer |
| Maximum Resolution | 1,200 dpi |
| Curing | Built-in UV-LED lamp |
| Connectivity | Ethernet (100BASE-TX / 1000BASE-T) |
| Printer Dimensions | 63 × 33.1 × 30.9 in. (1,599 × 840 × 783 mm) |
| Printer Weight | 446 lb. (202 kg) |
RC-300c vs. RC-300 Standard
Choose the RC-300c when transparent, liquid-filled, or pre-labeled bottle decoration is a core requirement. Choose the standard RC-300 when you need general cylindrical, tapered, and curved-profile UV printing without the clear-support workflow.
GPI Supplies Support
GPI Supplies can help evaluate bottle material, transparency, fill state, label condition, object dimensions, ink setup, and production requirements before you invest in the RC-300c.
Roland RC-300c: Clear Bottle UV Printing Without Blackout Filling
Direct decoration for transparent, liquid-filled and pre-labeled bottles using Roland's helical cylindrical print path.
Clear Support Production
Decorate the bottle after filling, labeling or both.
The RC-300c opens a digital finishing workflow for clear packaging where direct decoration needs to happen late in the production process.
Premium Packaging
Short runs without analog setup
Create personalized, seasonal and limited-edition fragrance, cosmetic and beverage packaging.
Helical Printing
360° decoration on shaped objects

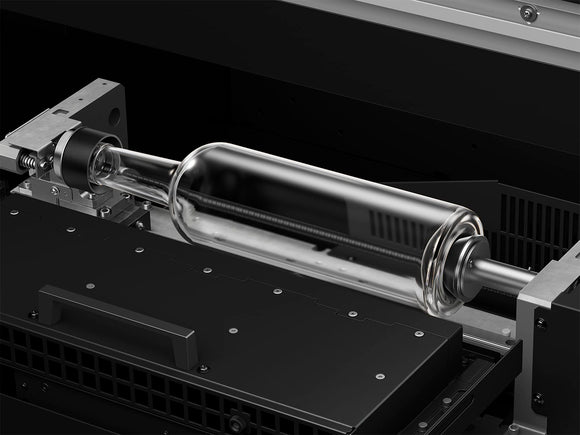

Print continuously around cylindrical, tapered and curved profiles with controlled registration.
Clear bottle support
Transparent and liquid-filled containers.
Transparent and liquid-filled containers.
Up to 5 in diameter
127 mm maximum object diameter.
127 mm maximum object diameter.
Up to 10° taper
Supports shaped premium packaging.
Supports shaped premium packaging.
Up to 1,200 dpi
High-resolution UV decoration.
High-resolution UV decoration.
RC-300c specifications & production fit
| Model | RC-300c Clear Support |
|---|---|
| Printing method | Piezo inkjet with helical cylindrical printing |
| Clear support | Transparent, pre-filled and pre-labeled bottle workflows |
| Object diameter | 1.78–5 in / 45–127 mm |
| Object length | 1.19–13.9 in / 30–355 mm |
| Maximum print length | 11.8 in / 300 mm |
| Maximum taper | 10° |
| Maximum object weight | 6.6 lb / 3 kg |
| Maximum resolution | 1,200 dpi |
| Ink | ECO-UV EUV-HB, 1000 mL |
| Ink configuration | CMYK + Gloss + White ×2 + Primer |
| Connectivity | Ethernet 100BASE-TX / 1000BASE-T |
| Printer dimensions | 63 × 33.1 × 30.9 in |
| Printer weight | 446 lb |
| GPI price | $74,995 |
RC-300 Standard or RC-300c Clear Support?
RC-300 StandardGeneral cylindrical production
Choose the standard RC-300 for general bottles, tumblers, cups, flasks, containers and curved-profile products that do not require the clear-support workflow.
View RC-300 StandardRC-300c Clear SupportTransparent and filled bottle production
Choose the RC-300c when clear, translucent, liquid-filled or pre-labeled bottles are central to your production workflow.
Evaluating clear-bottle digital decoration?
GPI can help review container material, fill state, label condition, object geometry, ink setup and production volume before you select the RC-300c.
Explore the Roland VersaObject RC-300c Clear Support UV Cylindrical Printer
