STS S-24 24" DTF Powder Shaker & Dryer

24-inch DTF powdering and curing in one finishing station
Top and bottom infrared heat with 7-inch LCD temperature controls
Vacuum conveyor, tension take-up and built-in charcoal/HEPA filtration

Standalone S-24 shaker/dryer. Requires 208/220 V single-phase power; freight quoted separately.

$11,995.00 Save $-11,995

Apply for Financing

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Overview Details Supplies Specs Instructions

Automate the finishing stage of your 24-inch DTF workflow. The STS S-24 applies TPU adhesive powder to printed transfer film and cures it with top and bottom infrared heat. A 7-inch LCD control panel, vacuum conveyor and tension-controlled take-up help you manage powdering, heating and film movement in one system.

Up to 24-inch / 610 mm film width.
Automatic powder distribution with adjustable temperature and auto/manual operating modes.
Top and bottom infrared drying with mesh/belt-driven film transport.
Built-in charcoal and HEPA air filtration, plus manufacturer-specified safety sensors.
208/220 V, single-phase, 30 A electrical specification; 6 kW power consumption.

Standalone shaker and dryer: This listing is for the S-24, not an XPD-924D printer bundle. A printer, heat press, consumables, installation and training are not included unless expressly itemized in your quote.

Plan your delivery: Request a quote to confirm equipment availability, freight, unloading requirements and the correct setup for your shop. Freight and optional delivery services are quoted separately.

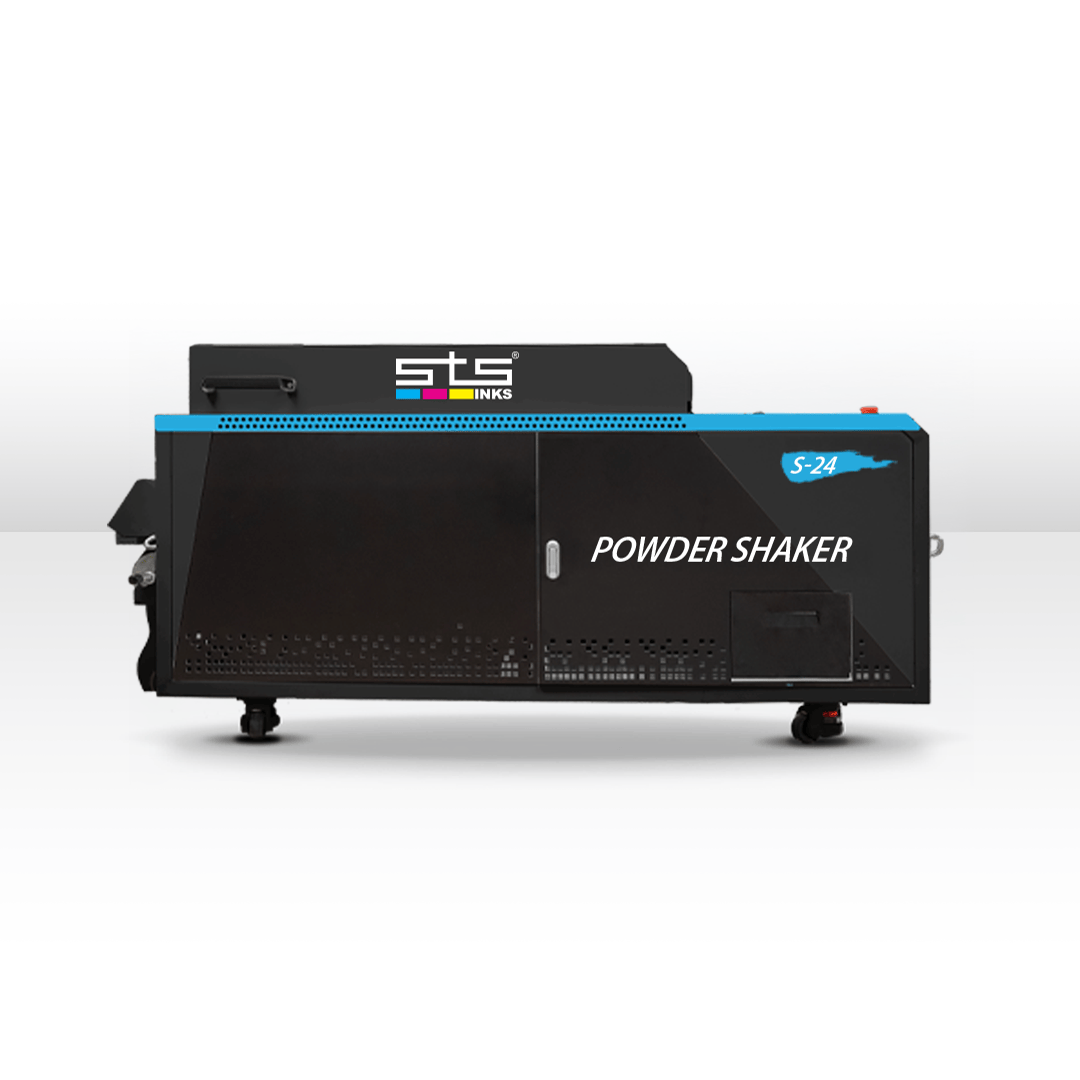

Bring powdering and curing into one DTF finishing station

STS S-24 24-inch automatic powder shaker and dryer

Move printed DTF film through adhesive-powder application and infrared curing with the STS S-24. This standalone shaker and dryer supports film up to 24 inches wide and combines automated powder distribution, controlled film transport and adjustable heat in one system.

Build around your existing printing workflow or discuss an STS printer pairing with GPI. This listing covers the S-24 finishing unit only; a printer, heat press and consumables are separate unless itemized in your quote.

Bring powdering and curing into one DTF finishing station

Download S-24 Brochure

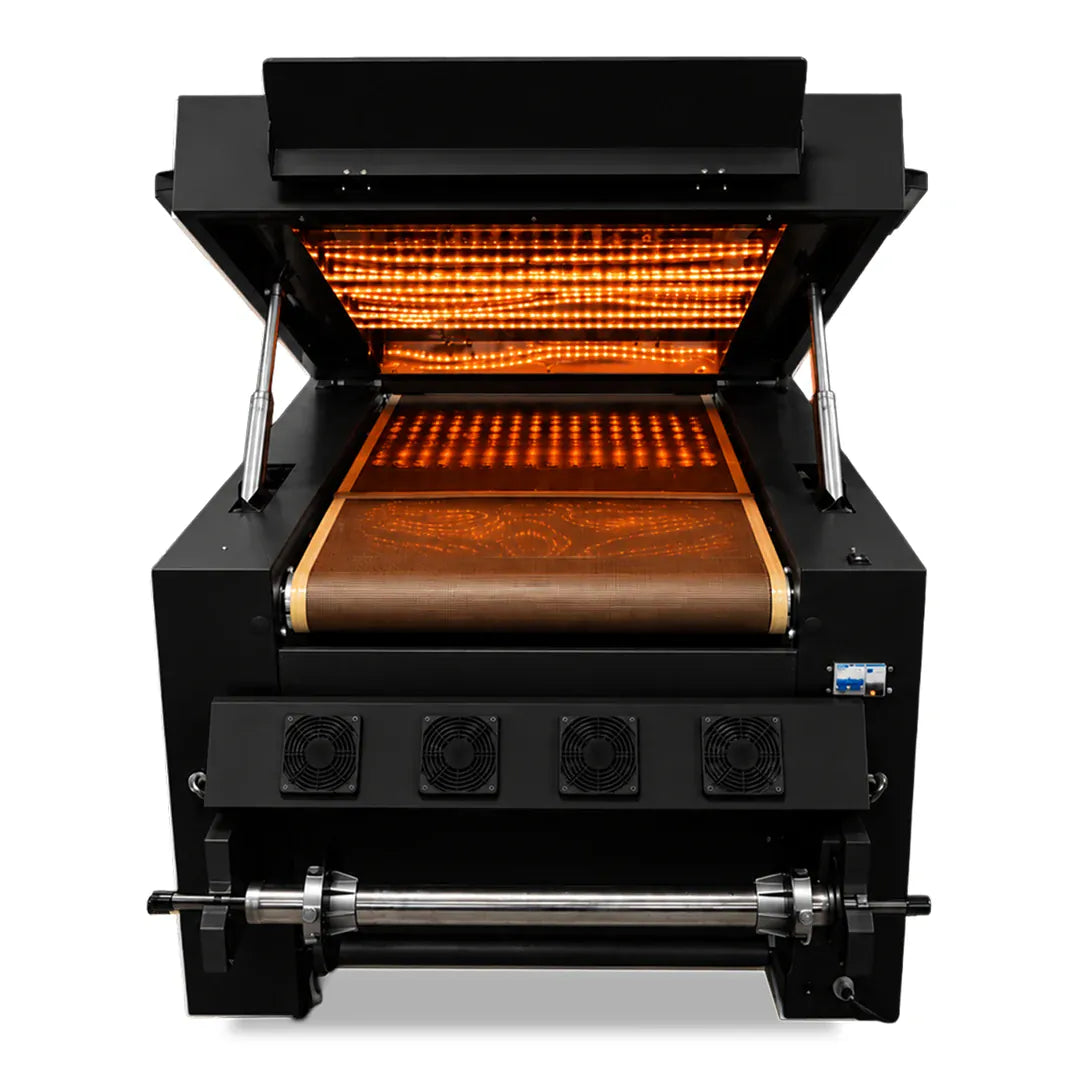

Automated powder application for a repeatable workflow

The S-24 distributes TPU adhesive powder over printed transfer film before it enters the drying stage. Automatic powder-weight distribution control reduces the need to powder each transfer by hand, while auto and manual operating modes let you manage the process for your application.

Confirm the powder, film and ink combination before production. Coverage and curing settings still need to be matched to the consumables and the manufacturer's instructions; automation does not replace application testing.

Automated powder application for a repeatable workflow

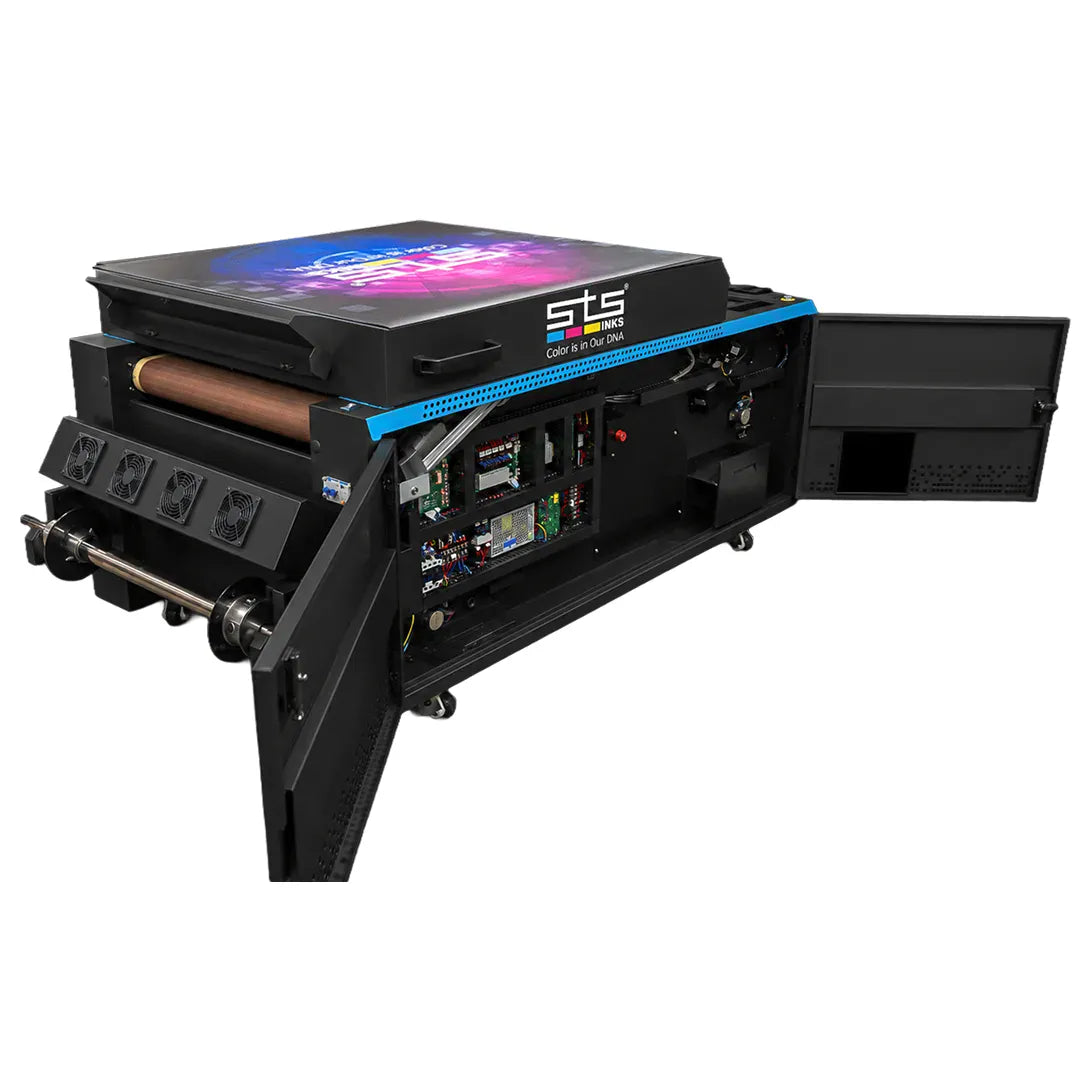

Control infrared heat and film movement

Top and bottom infrared drying: Heat the powdered film as it passes through the curing section.
7-inch LCD interface: Adjust temperature and select the appropriate operating mode.
Mesh/belt-driven vacuum conveyor: Support and transport film through the machine.
Tension feed and take-up reel: Manage film movement through the finishing workflow.

For an integrated installation, verify the printer's film-feed arrangement and working space with GPI. The S-24's 24-inch maximum width is a film-handling specification, not a guarantee of compatibility with every printer.

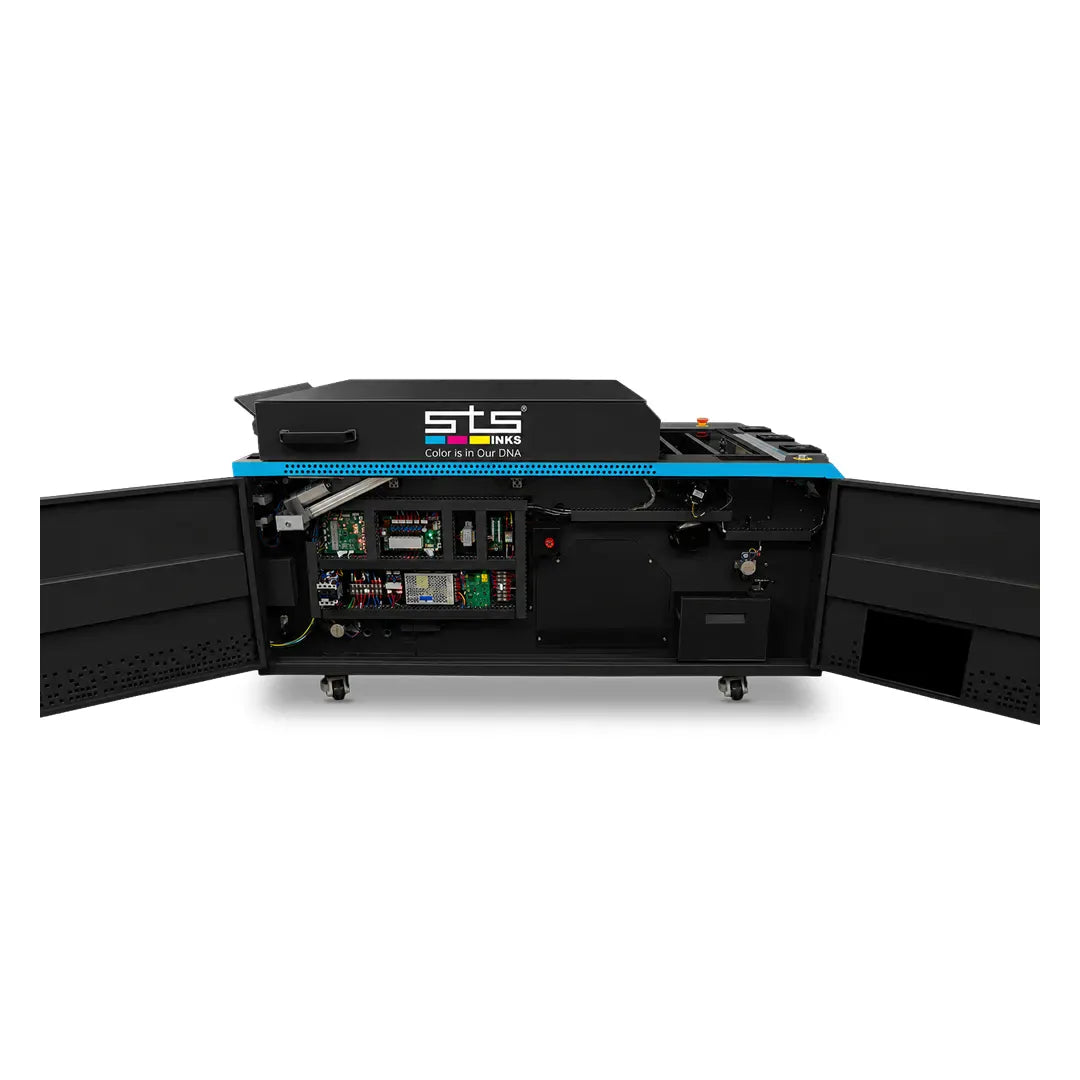

Built-in filtration with a planned maintenance routine

A built-in air purifier uses charcoal and HEPA filtration. STS also specifies a TPU-chamber safety sensor and dual automatic shutoff sensors designed to help prevent overheating.

Plan filter replacement, powder cleanup and service access as part of installation. Built-in filtration is not a substitute for following the equipment instructions, consumable safety data sheets and your shop's ventilation requirements. Keep guards and safety devices in place during operation.

Built-in filtration with a planned maintenance routine

S-24 specifications and installation planning

Use the machine dimensions for workspace planning and the packaged weight for delivery planning. Allow additional room for the open hood, film path and maintenance. A qualified electrician should verify the supplied unit's connection and circuit requirements before delivery.

Model / manufacturer SKU	STS S-24 / S.DTF.Pro.24.S24
Maximum film width	24 in. / 610 mm
Controls and drying	7-inch LCD; adjustable temperature; auto/manual modes; top and bottom infrared heat
Film handling	Mesh/belt-driven vacuum conveyor with tension feed and take-up reel
Filtration	Built-in charcoal and HEPA air filtration
Electrical specification	208/220 V; 50/60 Hz; single-phase; 30 A
Power consumption	6 kW
Machine size (W x L x H)	Approximately 38.5 x 66 x 40 in. / 980 x 1680 x 1020 mm
Net machine weight	552 lb / 250 kg, as published by STS
Packaged shipping weight	815 lb / 370 kg, as published by STS
Freight and receiving	Quoted separately. Confirm final crate dimensions, access and unloading requirements before shipment.

STS S-24: questions before you buy

Is this a DTF printer or a printer bundle?

No. This product is the standalone S-24 powder shaker and dryer. It finishes printed film; a compatible DTF printer and a heat press for garment application are separate equipment.

Can it work with my existing printer?

STS describes independent operation or use with an STS DTF printer. Provide GPI with your printer model, film width and feed arrangement so the complete workflow can be checked before purchase.

Does it plug into a standard 120 V outlet?

No. The published requirement is 208/220 V, single-phase, 30 A, with 6 kW power consumption. Confirm the actual connection and circuit requirements with a qualified electrician.

Are freight and setup included?

Freight and any liftgate, residential or inside-delivery services must be quoted for your destination. Installation, training, consumables and warranty coverage must be expressly stated in the written quote; they are not assumed included.

Which document is available here?

The download above is the manufacturer's S-24 brochure with features and specifications. It is not an operator manual. Obtain the current setup, safety and operating instructions for the supplied machine before use.

Discuss your S-24 workflow and delivery requirements with GPI Supplies.

Model	STS S-24 automatic TPU powder shaker and dryer
Manufacturer product number	S.DTF.Pro.24.S24
Maximum film width	24 in. / 610 mm
Controls	7-inch LCD; adjustable temperature; auto and manual modes
Drying system	Top and bottom infrared heating
Film handling	Mesh/belt-driven vacuum conveyor; tension feed and take-up reel
Air filtration	Built-in air purifier with charcoal and HEPA filters
Electrical specification	208/220 V; 50/60 Hz; single-phase; 30 A
Power consumption	6 kW
Machine dimensions (W x L x H)	Approximately 38.5 x 66 x 40 in. / 980 x 1680 x 1020 mm
Net machine weight	552 lb / 250 kg, as published by STS
Shipping weight	815 lb / 370 kg, as published by STS
Packed dimensions and freight	Confirm final crate dimensions, freight charges and unloading requirements on your quote.

Machine dimensions and weights are from the STS S-24 brochure. Confirm the supplied configuration and installation requirements before ordering.
