Roland TrueVis AP-640 | Resin/Latex Printer

The HP 365 Killer!!

  • Unbeatable Price. Our AP-640 TrueVIS Latex printer is now available for an incredible $9,995, costing significantly less than HP’s current HP 365 $11,495 expires on August 31st.
  • Cost-Efficient Permanent Print Heads. The Roland AP-640 features permanent Piezo print heads, eliminating the HP 365’s recurring expense of replaceable heads.
  • Superior Warranty Coverage. With Roland’s 2-year bumper-to-bumper warranty, the AP-640 offers double the coverage of the HP 365, which only includes a 1-year warranty. This extended protection ensures peace of mind and is a testament to the Roland AP-640’s long-term reliability.
  • Roland VersaWorks 6.0 RIP is included with free lifetime upgrades.

$11,495.00

Earn [points_amount] when you buy this item.

{{machine_title}}

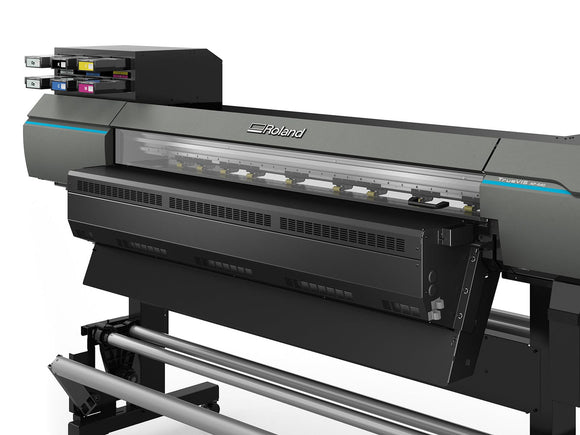

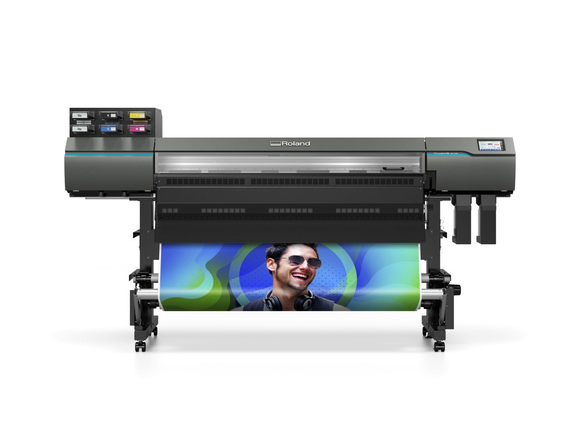

TruVIS AP-640

Large Format Latex Printer

Switch to a latex printer that leaves the competition behind. Designed for professionals who demand exceptional print quality, dependable performance, and maximum efficiency, the TrueVIS AP-640 sets a new standard in the industry.

  • Unmatched performance and vibrant results across a wide range of media.
  • Superior consistency and reliability with stable and accurate printing over longer periods of time.
  • Lower operating costs and easier maintenance with Roland DG’s advanced inks, features, and technology.

The Best in Category - Hands Down.

Feature Icon 1

Vibrant Colors
Natural beauty and vividness never before seen in a latex printer.

Feature Icon 2

Consistent Quality
Stable and accurate printing over extended print runs.

Feature Icon 3

Reliable & Fast
Consistent, high-quality output for short, reliable turnaround times.

Feature Icon 3

Lower Operating Costs
Produce more with less thanks to advanced inks and features.

Feature Icon 3

Minimal Maintenance
Designed for dependable operations with minimal upkeep.

Feature Icon 3

Intuitive Design
Equipped with user-friendly software and features.

The Lowest Operating Costs of Any Latex Printer. Ever.
The AP-640 is engineered to maximize output while minimizing running costs. Featuring high-capacity ink pouches and quick-drying latex inks, the printer enables your business to produce more with less. The superior Roland DG build and advanced features result in lower maintenance costs along the way.
39%

Faster
Print at higher speeds than competing latex printers in standard mode, consistently over long print runs.

29%

Less Ink
Consume less ink on average during normal production than competing latex printers.

Save

Thousands
Dependable operation with minimal upkeep and long-lasting printheads equals big savings.

The Widest Color Gamut in Its Class

TA Inks boast the widest gamut and most vibrant colors of any 4-color latex wide-format printer. The True Rich Color 3 print setting maximizes the potential of the printer and inks, allowing you to produce highly impactful graphics that combine vivid colors and natural tones that viewers are sure to love.

Roland VersaStudio BY-20 Front Facing Design

Spot Colors That Are Spot-On

The AP-640 offers the most precise color reproduction capabilities that allow you to match brand colors — even those that are traditionally difficult. Plus, more than 300 popular media profiles are ready for use with the AP-640 and TA Ink, including PVC and non-PVC media, such as wallpaper, film, vinyl, roll-up screens, canvas, heat transfer paper, and more

Print More

Natural Beauty and Vividness

Produce natural beauty and vividness never before seen in a latex printer. The AP-640 benefits from hundreds of dedicated, media-specific printing profiles that control optimal ink volume and drying temperature. An optimizer prepares the media surface, facilitating the formation of precise dots, while variable dot technology fires three types of ink droplets to deliver unparalleled image quality.

Print More

Exceptional Print Accuracy and Vivid Detail

The AP-640 ensures superior print precision with advanced optical registration technology that automatically adjusts media gap and feed compensation at the press of a button. Its dual, staggered printhead configuration, featuring an optimizer printhead, enhances ink droplet formation for ultra-precise color and sharper images, delivering consistently flawless output.

TruVIS Latex Ink

New TrueVIS Resin/Latex Inks combine all the quick-drying, high-productivity, and environmentally friendly advantages of resin with unsurpassed TrueVIS image quality and color. They’re also extremely cost effective, allowing users to create more output with less ink.

Plus, these GREENGUARD Gold certified water-based inks contain no hazardous substances and meet the most rigorous standards for low VOC emissions. The resin ink is safe, durable, and versatile, yielding stunning, long-lasting graphic results on a wide range of media.

{{additional_info_title}}

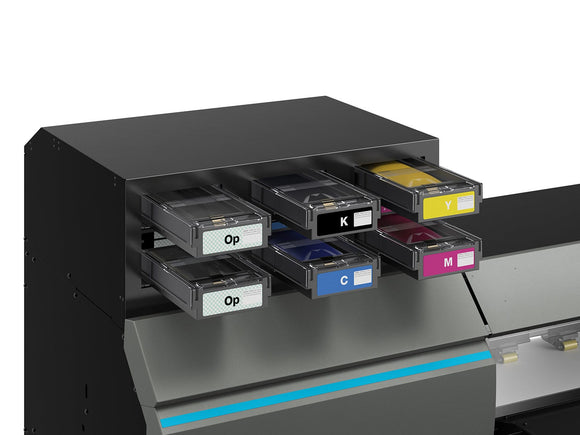

Available Ink Configurations:

CMYK + Optimizer

AP-640
Printing method Piezo ink-jet method
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Max. 0.039 in. (1.0 mm) with liner
Roll outer diameter Max. 9.8 in. (250 mm)
Roll weight Max. 99 lb. (45 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width (*1) Max. 63.5 in. (1,615 mm)
Ink Type Resin/Latex ink 700 ml pouch
Colors Four colors (cyan, magenta, yellow, and black) and optimizer
Printing resolution (dots per inch) Max. 1200 dpi
Ink drying system (*2) Print heater set temperature: 77 to 113°F (25 to 45°C)
Dryer set temperature: 158 to 230°F (70 to 110°C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated Input Printer: 200-240 Va.c. 50/60 Hz 3 A
Dryer 1: 200-240 Va.c. 50/60 Hz 10 A
Dryer 2: 200-240 Va.c. 50/60 Hz 10 A
Power consumption During operation Approx. 4,000 W
Sleep mode Approx. 65 W
Acoustic noise level During operation 69 dB (A) or less
During standby 53 dB (A) or less
Dimensions (Width x Depth x Height) 113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm)
Weight (with stand) 587 lb. (266 kg)
Environment (*3) During operation Temperature: 68 to 86 °F (20 to 30 °C),
Humidity: 20 to 80 %RH (no condensation)
Recommended Environment Temperature: 68 to 77 °F (20 to 25 °C),
Humidity: 40 to 60 %RH (no condensation)
Not operating Temperature: 41 to 104 °F (5 to 40 °C),
Humidity: 20 to 80 %RH (no condensation)
Included items Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
