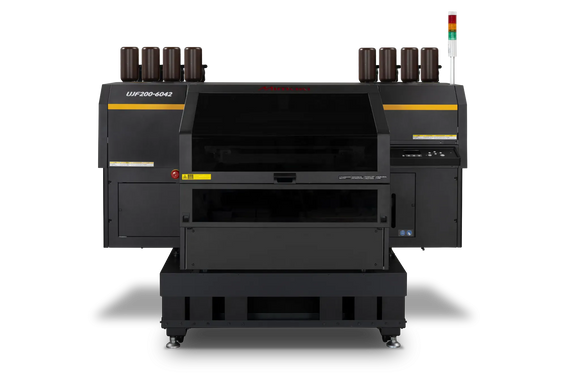

Mimaki UJF200-6042 Benchtop UV-LED Flatbed Printer

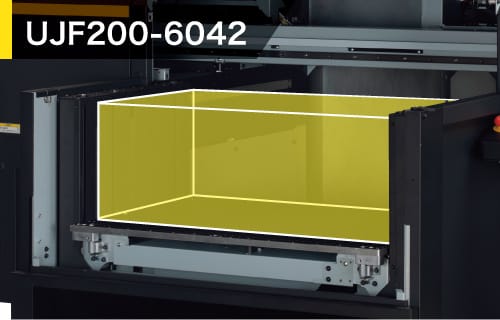

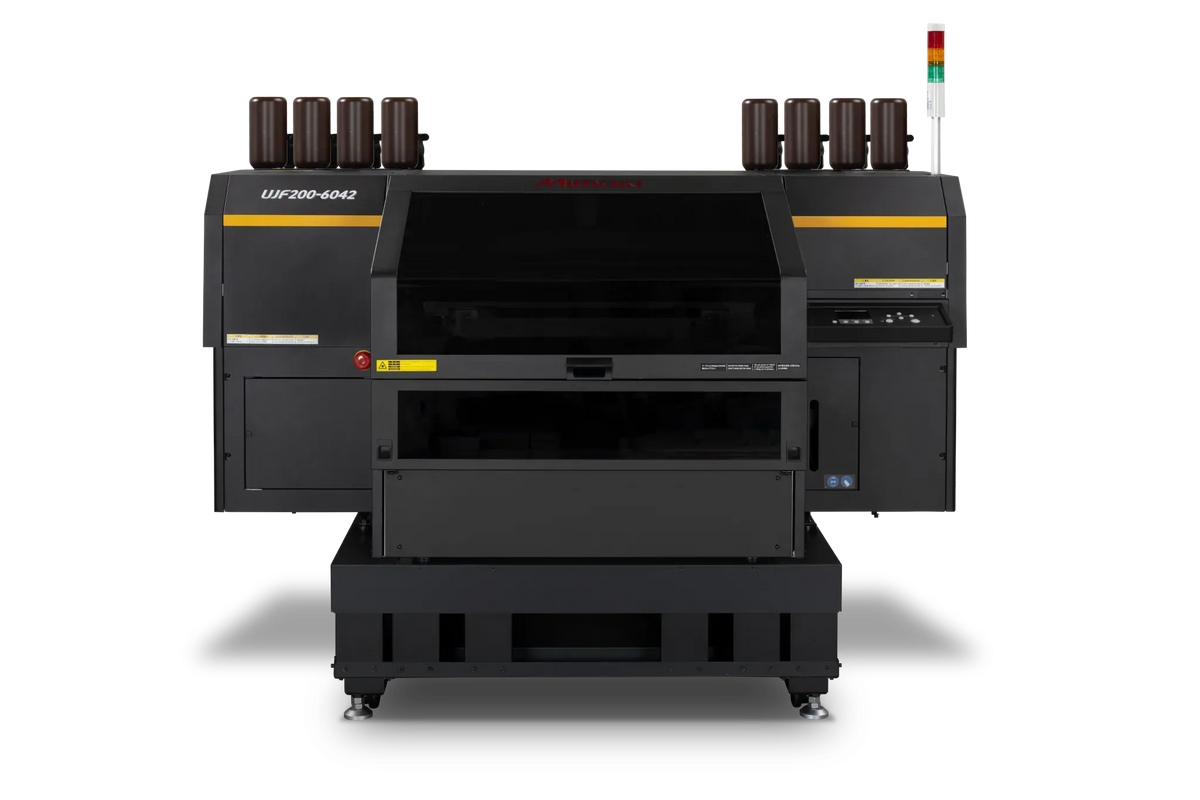

The Mimaki UJF200-6042 gives you a wider 610 x 420 mm workspace for suitable larger products, multi-part fixtures and flexible batch arrangements. Decorate promotional goods, custom accessories, signs and industrial components directly with UV-LED printing rather than limiting your workflow to thin sheet media.

More print area does not mean a higher load limit. The 6042 shares the series' 250 mm object-height capacity and 20 kg media-weight limit. Select it for the wider printable area, then match the ink configuration, positioning options and material testing to your production needs.

The published U.S. MSRP is $39,995. Request a complete equipment quote for availability, configuration, freight and services. The dedicated stand and automation options shown in manufacturer images are optional unless explicitly included in your quote.

Both UJF200 models accommodate objects up to 9.8 inches thick, extending direct-to-object opportunities beyond small flat blanks. Explore suitable boxes, cases, components, promotional products and other customized goods while staying within the selected model's printable area and media-load limit.

Evaluate the actual print surface. Object height alone does not establish printability. Shape, surface geometry, fixture design and the permitted printhead clearance matter. Sample products pictured are application examples, not included supplies or a guarantee of suitability for every material.

Plan repeatable placement with suitable jigs, confirm the full loaded setup with GPI, and test adhesion and end-use durability on the actual substrate before a production run.

The UJF200 series supports ELH-100 hard UV or ELS-120 flexible UV ink setups. White and clear capabilities depend on the selected configuration, while PR-200 primer provides an additional option for supported applications requiring adhesion assistance.

Available fluorescent pink and yellow. EFS-150 fluorescent inks expand creative choices for eye-catching graphics, promotional goods and specialty decoration. They require a supported configuration and are not automatically included with every printer.

Choose before ordering. Not every listed ink color or family is installed simultaneously. Confirm the channel arrangement, initial ink package and suitable workflow with GPI. Do not substitute older UJF ink families based on similar names or assume inks are interchangeable.

Material coatings, preparation and curing affect adhesion and durability. Test your application; special-use requirements such as food contact or washing need separate verification.

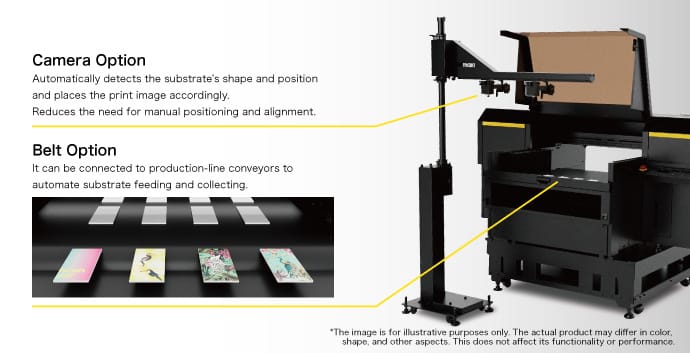

The optional camera system can detect object position and orientation and support print-data alignment through the supported RIP workflow. It is designed to reduce repetitive manual positioning work on suitable applications, rather than eliminate the need to validate object recognition and print placement.

An optional belt system adds automated material handling possibilities. Discuss your object shapes, loading and unloading process, target job sequence and production volume with GPI before selecting automation equipment.

Options are quoted separately. The camera, belt system and any required accessories or integration are not included in the displayed printer MSRP unless itemized on your written quote. The illustration shows an optional workflow, not the standard delivered package.
