| Printer Method |
Piezo ink-jet method |
| Media |
Width: 5.91 to 20.2 in. (150 to 515 mm) |
Width: 5.91 to 30 in. (150 to 762 mm) |
Thickness: Maximum 1.0 mm (39.3 mil) with liner for printing
Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner for cutting
|
| Roll outer diameter: Max. 5.9 in. (150 mm) |
Roll outer diameter: Max. 6.49 in. (165 mm) |
| Roll weight: Max. 13.2 lb. (6 kg) |
Roll weight: Max. 26.4 lb. (12 kg) |
|
Core diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm)
|
|
Printing/Cutting width *1: Max. 18.89 in. (480 mm)
|
Printing/Cutting width *1: Max. 28.97 in. (736 mm)
|

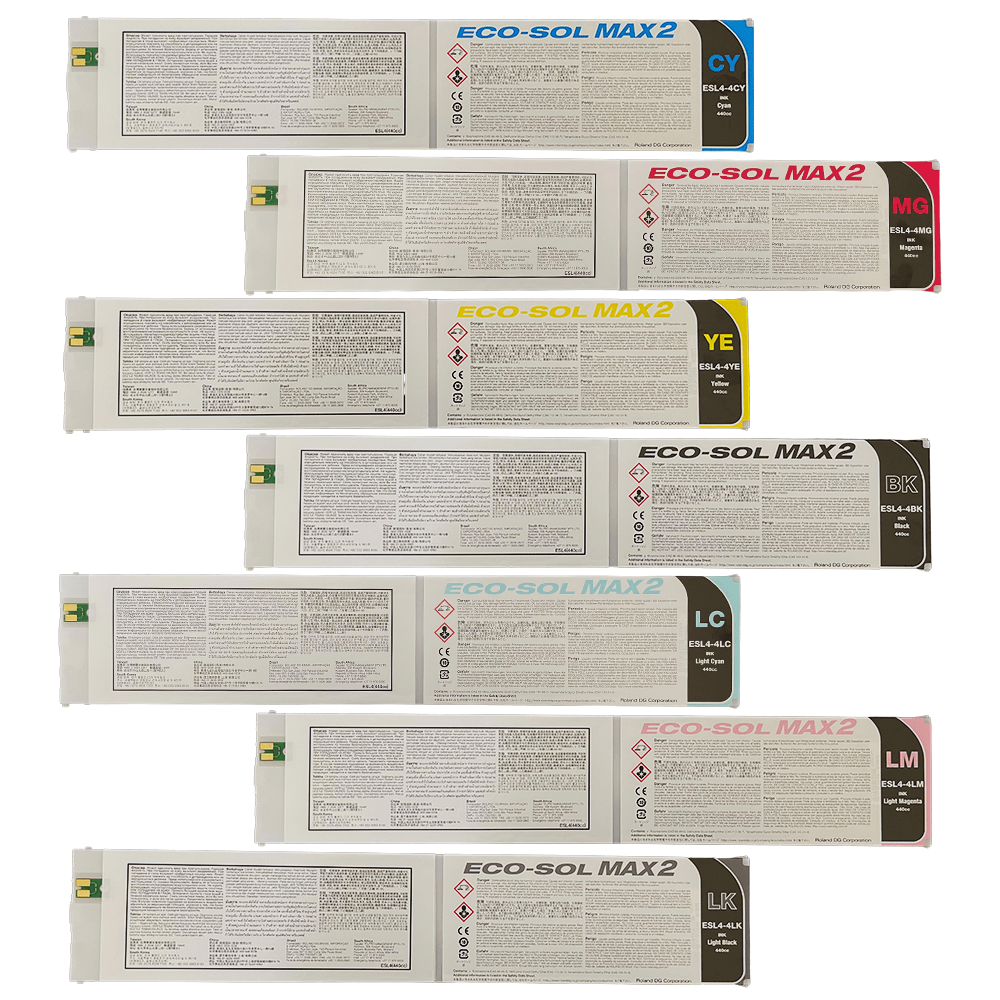

| Ink |

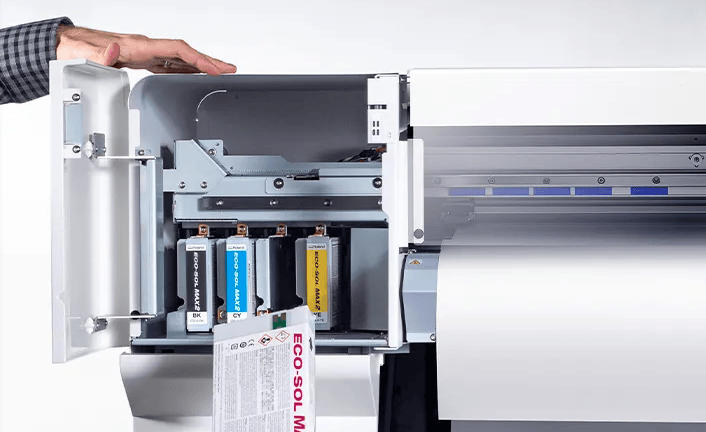

Type: 220 ml cartridge |
|
Four-color configuration: Cyan, Magenta, Yellow, Black (CMYK)
|
|
Five-color configuration: Cyan, Magenta, Yellow, Black, White (CMYKW)
|
| Printing Resolution |
Maximum 1,440 dpi |
| Cutting Speed |
0.39 to 5.9 in./sec. (10 to 150 mm/sec.) |
| Blade Force *2 |
30 to 500 gf |
| Blade |
Type: Roland CAMM-1 series blade
|
|
Offset: 0.000 to 1.500 mm (0.0 to 59 mil)
|
| Software Resolution (Cutting) |
0.025 mm/step (0.98 mil/step) |
| Media Heating System *3 |
Print heater: 86 to 95 °F (30 to 35 °C) |
Print heater: 86 to 104 °F (30 to 40 °C) |
| Dryer: 86 to 100.4 °F (30 to 38 °C) |
Dryer: 86 to 113 °F (30 to 45 °C) |
| Connectivity |
Ethernet (100BASE-TX/1000BASE-T, automatic switching)
|
| Power-Saving Function |
Automatic sleep feature |
| Rated Input |
100–240 V AC, 50/60 Hz, 2.1 A |
100–240 V AC, 50/60 Hz, 2.9 A |
| Power Consumption |
During operation: approx. 185 W |
During operation: approx. 260 W |
| Sleep mode: approx. 27 W |
| Acoustic Noise Level |
During operation: 62 dB(A) or less |
During operation: 65 dB(A) or less |
| During standby: 60 dB(A) or less |
During standby: 63 dB(A) or less |
| Dimensions (W × D × H) |
42.1 × 24.3 × 24.5 in. (1,069 × 617 × 622 mm) |
52.1 × 24.3 × 24.5 in. (1,323 × 617 × 622 mm) |
| Weight |
137 lb. (62 kg) |
164 lb. (74 kg) |
| Operating Environment |
During operation *4:
Temperature 68 to 89.6 °F (20 to 32 °C), humidity 35 to 80% RH (no condensation)
|
|
When not operating:
Temperature 41 to 104 °F (5 to 40 °C), humidity 20 to 80% RH (no condensation)
|
| Manufacturer-Supplied Items |
Power cord, media holders, replacement blade for the separating knife, user documentation, VersaWorks 7 RIP and print management software, Roland DG Connect, and other manufacturer-supplied accessories.
|
