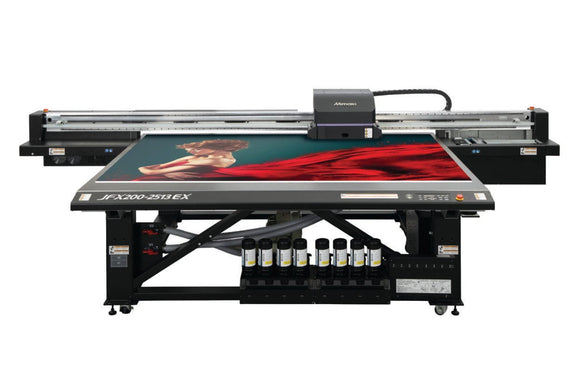

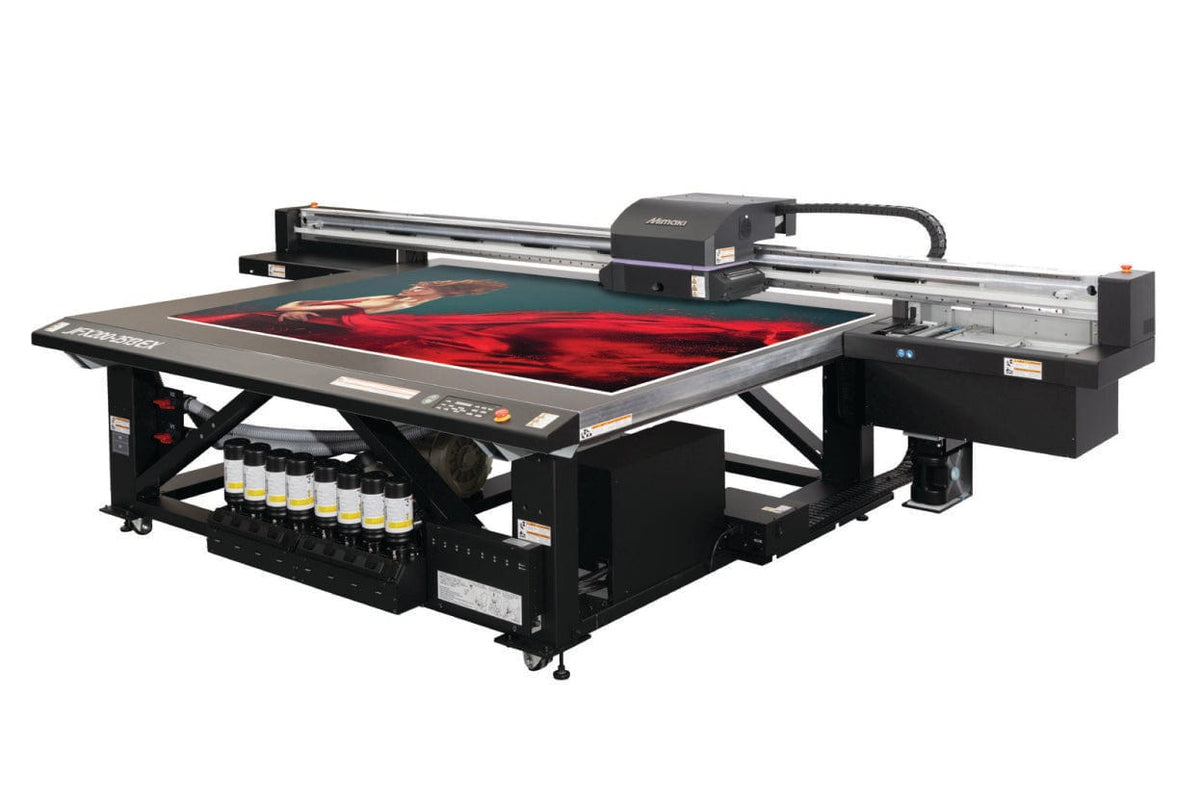

Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

2nd Year Warranty

  • Print on one 4’ x 8’ board or a variety of pre-cut pieces up to 2” thick.
  • Maximum print speed of up to 12 boards per hour
  • Three staggered printheads for simultaneous printing when using white and clear inks
  • Foot pedal to easily control vacuum when loading media

$69,995.00

Members earn 69,995 Points when they buy this item. Sign up or log in.

Pickup available at 375 Oser Ave
Usually ready in 2 hours

Overview Details Supplies Specs Instructions
Unparalleled Results To Expand Your Business


Built upon the proven technology of Mimaki’s industry-leading flatbed printer, the JFX200-2513 EX offers expanded capabilities with greater productivity and functionality. New features include a draft mode that enables a maximum print speed of up to 12 boards per hour and three staggered printheads that allow for continuous printing without sacrificing speed. Create a range of applications such as installation-ready rigid signage, wayfinding, decorative panels, custom pieces, printing jigs and more.

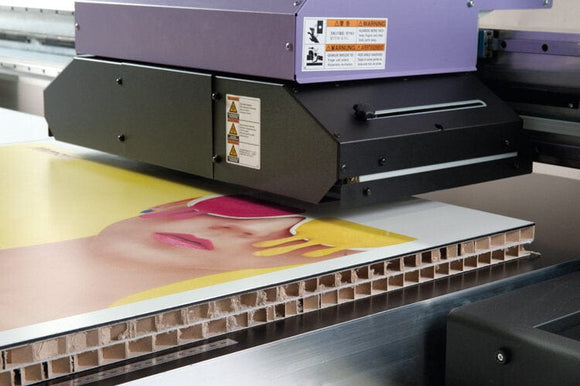

  • Print on one 4’ x 8’ board or a variety of pre-cut pieces up to 2” thick
  • Maximum print speed of up to 12 boards per hour
  • Three staggered printheads for simultaneous printing when using white and clear inks
  • Foot pedal to easily control vacuum when loading media
  • Dual-zoned vacuum table and user-adjustable layout pins
  • Nozzle Check Unit included
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • Updated RIP software RasterLink6 Plus to support 2.5D textured print workflows



Know before you buy

Choose what type of signage or packaging you are creating to outfit this flatbed printer with the correct ink set up.

Items included with the Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

  • Dual-zoned vacuum table and user-adjustable layout pins
  • Foot pedal to easily control vacuum when loading media
  • Nozzle Recovery System and Nozzle Check Unit
  • Variable Dot Technology and Mimaki Advanced Pass System (MAPS) for smooth gradients and solids
  • Greenguard Gold
  • UV-LED inks in 4 and 6 color configurations plus Clear, Primer and White
  • Updated RasterLink6 Plus to support textured print workflows (2.5D)
  • USB/Ethernet connectivity

PR-200 Ink Primer 1L Bottle

PR-200 Ink Primer 1L Bottle

$290.00
View
Mimaki LH-100 UV Ink Mimaki LH-100 UV Ink - 0

Mimaki LH-100 UV Ink

From
$70.00
View
Mimaki maintenance liquid for UV printers

Mimaki UV Maintenance Liquid 07 | 1L

$58.00
View
mimaki uv printer maintenance liquid washing liquid only Mimaki UV Maintenance Liquid 15 (100ml Bottle) - 0

Mimaki UV Maintenance Liquid 15 (100ml Bottle)

$37.00
View
PR-200 Maintenance Liquid

PR-200 Maintenance Liquid

$37.00
View
Save
$12.43
Propeel UV transfer film uv transfer sheets from propeel

Propeel UV Transfer Film

$229.00 | $241.43
View
Mimaki Kebab MKII Series Mimaki Kebab MKII Series - 0

Mimaki Kebab MKII Series

From
$2,751.00
View
Mimaki Kebab HS Rotary System Mimaki Kebab HS Rotary System - 0

Mimaki Kebab HS Rotary System

$5,999.00
View

Printhead

JFX200-2513 EX: Three on-demand piezo heads in a staggered array
JFX200-2531: Two on-demand piezo heads in a staggered array

Print resolution

JFX200-2513 EX: 300, 450, 600, 900, 1,200dpi

Print Speed (4 Color Mode)

JFX200-2513 EX: up to 377 SqFt/Hr (31.9 m2/h)
JFX200-2531: up to 269 SqFt/Hr (25 m2/h)

Maximum Print Area

JFX200-2513 EX: 98.4″ x 51.2″ (2500 x 1300 mm)
JFX200-2531: 98.4″ x 122.0″ (2500 x 3100 mm)

Maximum media area

up to 101.6” x 80.3”

Maximum Media Thickness

up to 1.97″ (50 mm)

Maximum Media Weight

110.3 lbs. (50.0 kg)

Ink Type

JFX200-2531: Rigid: LH-100, Flexible: LUS-120, LUS-150, LUS-200 Thermoforming: LUS-350

JFX200-2513 EX: Rigid: LH-100, Flexible: LUS-120, LUS-150, Thermoforming: LUS-350

Interface

JFX200-2531: USB2.0 Hi-speed
JFX200-2513 EX: Ethernet 1000BASE-T USB2.0 Hi-speed

Power Supply

JFX200-2513 EX: Single phase, 200 V AC-240 V AC, 50 Hz/60 Hz, less than 12 A

JFX200-2531: Single-phase AC200-240V 12A or less, 8A or less (Two inlets)

Power Consumption

JFX200-2513 EX: AC200V: 2.88 kVA or less
JFX200-2531: AC200V: 4.8 kVA

Operational Environment

Temperature 59° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

JFX200-2513 EX: 173.2″ x 96.4″ x 49.2″ (439.9 x 244.9 x 125 cm)
JFX200-2531: 173.2″ x 168.9″ x 49.2″ (439.9 x 429 x 125 cm)

Weight

JFX200-2513 EX: 1433 lbs. (650 kg)
JFX200-2531: 2205 lbs. (1000 kg)

Certifications

JFX200-2513 EX: VCCI class A, CE mark, CB report, U.S. safety standard UL (UL62368-1), RoHS Directive, FCC Class A, Machinery directive, EAC, RCM

JFX200-2531: VCCI CLASS A / FCC CLASS A / ETL UL60950-1 /CB / CE Marking (EMC, Low voltage, machinery directive and RoHS)
