Mimaki JFX200-1213 EX - 4'x4' UV Flatbed Printer

  • Max print area: 1,270 mm × 1,300 mm (50.0 x 51.2 inches)
  • Highest-in-class productivity at 25m²/h
  • Operator-friendly controls accessible from the front
  • Ideal for UV printing applications like signage, displays, and packaging

$54,995.00 $64,995.00 Save $10,000

Members earn 54,995 Points when they buy this item. Sign up or log in.

Pickup available at 375 Oser Ave
Usually ready in 2 hours

Get Started UV Printing with the New Mimaki JFX200-1213 EX

The Mimaki JFX200-1213 EX is the perfect entry-level UV flatbed printer designed for small to mid-size businesses looking to step up their production game. With a compact footprint and a print area of 1,270 mm × 1,300 mm (50.0 x 51.2 inches), this printer offers high-quality prints with incredible versatility, all while maintaining an operator-friendly design.

For businesses upgrading from a desktop UV printer or just getting started in digital printing, the JFX200-1213 EX is an ideal choice with its impressive 25m²/h print speed, making it one of the highest in its class.

*JFX200-1213 EX discount is part of the TRADE IN - TRADE UP programs.  If you have another brand UV printer to either trade in or an existing Mimaki that you want to trade up to, then this $10,000 can be taken off the price of the printer

Top Features of the Mimaki JFX200-1213 EX

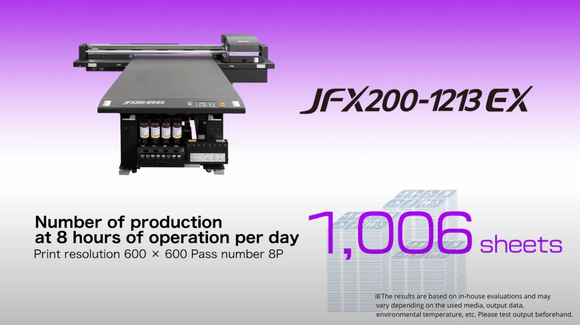

  • Fast Production Speed: With a print speed of up to 25m²/h, this UV printer allows for quick and efficient printing—up to 1006 A4 sheets in an 8-hour production day.

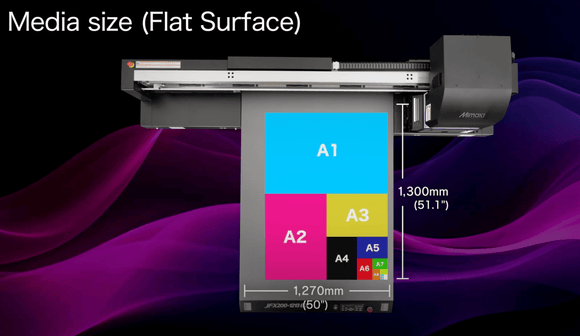

  • Compact Flatbed Size: The print area of 1,270 mm × 1,300 mm (50.0 x 51.2 inches) provides ample space for medium-size projects while saving valuable floor space in your shop.
  • High-Quality UV Printing: The JFX200-1213 EX is known for its high image quality, offering consistent results for signs, displays, packaging, and more.
  • User-Friendly Design: Easy-to-access operator controls, accessible from the front, make this printer ideal for small print shops and newcomers to UV printing.

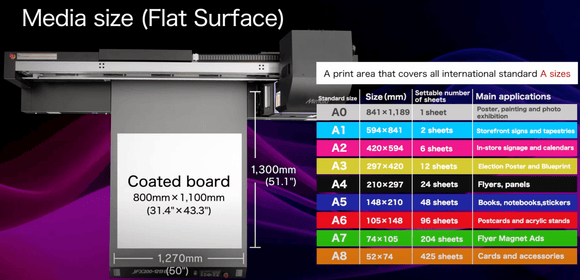

Applications for the Mimaki JFX200-1213 EX

This versatile flatbed printer handles a wide range of applications across different media sizes:

  • A0: Posters, paintings, photo exhibitions
  • A1: In-store signage, calendars
  • A3: Election posters, blueprints
  • A4: Flyers, panels
  • A5: Books, notebooks, stickers
  • A6: Postcards, acrylic stands
  • A7: Flyer magnet ads
  • A8: Cards, accessories
Mimaki JFX200-1213 print speeds Mimaki JFX200-1213 flatbed size Mimaki JFX200-1213 media sizes and applications

Compatible UV Inks

(1)
$225.00
View

JFX200-1213 EX Specifications

JFX200-1213 EX Specifications

JFX200-1213 EX
Print Head On-demand Piezo head (Array of 3 heads staggered)
Print Resolution 300, 450, 600, 900, 1,200 dpi
Ink Type UV curable ink: LUS-120 (C, M, Y, K, W, Cl)
UV curable ink: LUS-150 (C, M, Y, K, Lc, Lm, W)
UV curable ink: LUS-211 (C, M, Y, K, W, Cl)
*Only available in some regions
UV curable ink: LUS-350 (C, M, Y, K, W, Cl)
UV curable ink: LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
Primer: PR-200 *
Ink Supply System 1-liter bottle, 250ml bottle (LH-100, LUS-120, PR-200 only) *
Ink Circulation System * White ink circulation using Mimaki Circulation Technology (MCT)
Maximum Print Area (W×D) 50.0" × 51.2"
Media Dimensions (W×D) 50.0" × 51.2"
Height Max. 2.0"
Weight Less than 50 kg/m² (110.2 lb./ft²)
Media Absorption Type Blower adsorption type + foot switch
Number of Partitions 2 partitions (X-axis direction)
Curing Device LED-UV system
Interface USB 2.0, Ethernet
Safety Standards VCCI Class A, CE mark, CB report, UL (UL62368-1), RoHS, FCC Class A, Machinery directive, RCM
Input Power Supply Single phase, 200 V AC - 240 V AC, 50 Hz / 60 Hz, less than 12 A
Power Consumption Less than 2.88 kVA
Installation Environment Temperature 15 – 30°C (59 – 86°F)
Relative Humidity 35 – 65% RH
Accuracy Maintained Temperature 20 – 25°C (68 – 77°F)
Temperature Gradient Less than ±10°C/h (±18°F/h)
Dust Level Equivalent to a standard office environment
Assembled Dimensions & Weight (W×D×H) 123.7" × 91.3" × 48.6" / 1,124.3 lbs.
Shipping Dimensions & Weight (W×D×H) 138" × 91" × 61" / 2,404 lbs.
