Drag knife, tangential knife and camera registration solve different production problems. Choosing the right cutter technology can reduce weeding time, improve contour accuracy and prevent overbuying equipment your workflow does not need.

Quick comparison

How a drag knife works

A drag knife swivels naturally as the carriage changes direction. This is efficient and works extremely well for most adhesive vinyl, heat-transfer films, labels and decals. For standard sign and apparel production, drag cutting is often the best value because it is fast and mechanically simple.

Within the Summa lineup, S1 D focuses on straightforward everyday cutting, while S3D adds a more production-oriented S Class 3 workflow.

When true tangential cutting matters

A true tangential system actively controls the blade direction rather than allowing the knife to trail freely through every corner. That added control becomes valuable when the material resists blade movement or when very small geometry must stay sharp.

• Paint protection film
• Laminated print-and-cut graphics
• Stencil films
• Small lettering and detailed decals
• Thicker or structured media

The Summa S3T family is designed around these applications.

What camera registration adds

Optical registration depends on the cutter being able to identify printed marks reliably. Reflective, holographic, mirrored, metallic, translucent or very low-contrast surfaces can make that harder. A camera-guided system gives the cutter more visual information and can improve registration confidence on difficult media.

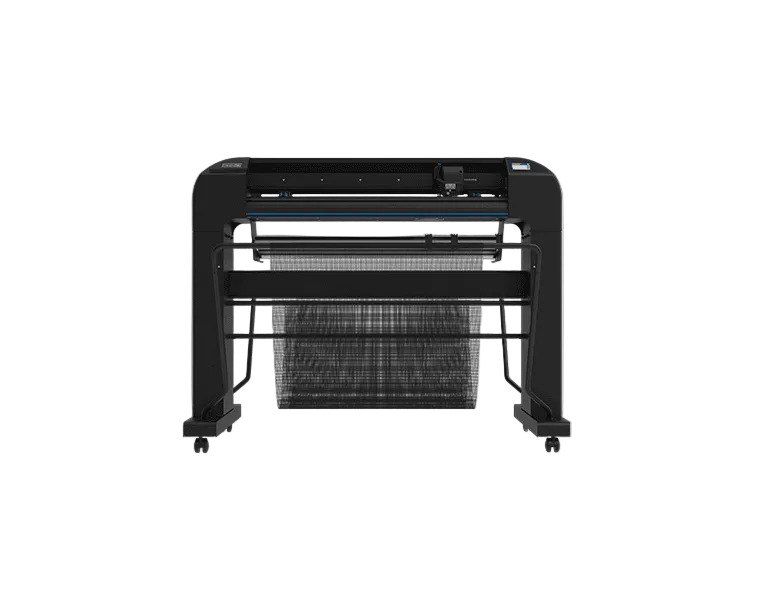

The Summa S3TC family combines true tangential cutting with OPOS-PRO CAM camera registration for this reason.

Drag knife vs tangential: which gives better quality?

Neither technology is automatically better for every job. A drag knife is the right tool when the material cuts cleanly and production speed matters. Tangential cutting is better when corners deform, material resistance changes the cut path, or thicker and laminated films need more controlled blade orientation.

Do you need camera registration?

You probably do not need camera registration for ordinary opaque vinyl and routine print-and-cut graphics. It becomes more valuable when the printed media itself is difficult for conventional optical sensors to read or when high-value specialty films make registration errors expensive.

What should DTF shops choose?

For DTF PET, the challenge is not just the blade—it is also low-friction media handling and roll-to-roll workflow control. The Summa S3 DTF 75 bundle combines camera registration, tangential cutting, frictionless feed and roll-up handling around the DTF use case.

Recommended technology by application

Compare the full Summa lineup

See the complete Summa Vinyl Cutters collection for model-by-model widths, pricing, applications and specifications. Replacement knives, holders, roll-handling options and consumables are available in the Summa Cutter Supplies & Accessories collection.
